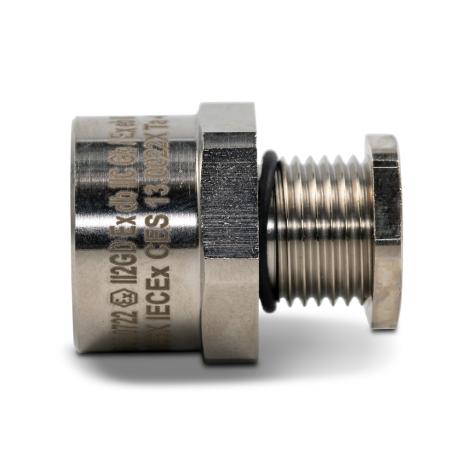

Brass Enlarger Nickel Plated Hazardous Areas M16-M20 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
The Brass Enlarger Nickel Plated Hazardous Areas M16-M20 is designed for safe and reliable thread adaptation in hazardous electrical installations. With a robust nickel-plated brass construction and an IP66/68 rating, it ensures protection against water ingress. Ideal for both indoor and outdoor applications, this enlarger features a silicone seal for enhanced durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Enlarger Nickel Plated Hazardous Areas M16-M20 | IP66/68 Rated | Durable Silicone Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBZBM16M20
Alternatively Known As: Brass Thread Enlarger, Hazardous Area Thread Adapter, Nickel Plated Brass Enlarger M16 to M20
Technical Specifications
- Material: Brass, Nickel Plated
- Seal: Silicone
- Temperature Range: -60°C to +130°C
- Ingress Protection: IP66/68
- Protection Types: Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IECEx CES 13.0022X, IEC/AS/NZS60079 (.0, .1, .7, .31), IEC/AS/NZS 60529
- Includes locknut
- Dimensions (H x L x W): 20mm x 40mm x 30mm
- Weight: 0.1 kg
Key Features
- Nickel plated brass construction for durability and corrosion resistance
- Suitable for hazardous areas with protection types Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
- Degree of protection IP66/68 against ingress of water
- Includes locknut as standard
- Temperature range from -60°C to +130°C
- Seal made of silicone for enhanced sealing
Professional Installation Requirements
- Installation should be performed by a qualified professional experienced in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Indoor and outdoor hazardous area electrical installations
- Enclosure mounting thread adaptation for fittings and glands in hazardous environments
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection by enclosures (IP Code)
Environmental Benefits
- Durable brass and nickel plating reduce the need for frequent replacements, minimizing waste
- Sealed design prevents ingress of contaminants, protecting electrical systems and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Brass Enlarger Nickel Plated Hazardous Areas M16-M20 is available for immediate purchase, ideal for hazardous area electrical installations requiring thread size adaptation.
