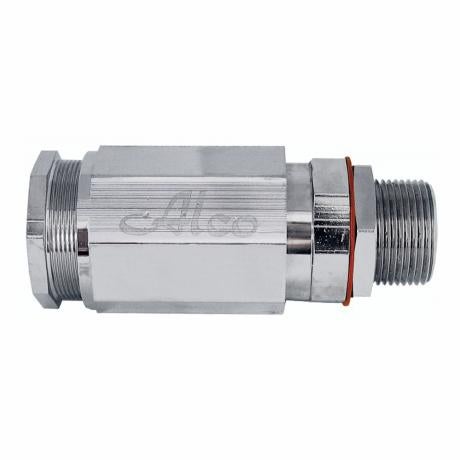

Brass Hazardous Cable Gland IP66/68 M90 | 81-90mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
The Brass Hazardous Cable Gland IP66/68 M90 is designed for armoured cables with a diameter of 81-90mm, providing a secure seal and protection in hazardous environments. With high ingress protection rated IP66/68, it ensures reliable performance in explosive atmospheres. Ideal for industrial applications, this cable gland meets stringent safety standards and includes a locknut for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Brass Hazardous Cable Gland IP66/68 M90 | 81-90mm Cable Diameter | Secure Seal for Armoured Cables | by Wattmaster
Brand: Wattmaster
SKU: ALCHAW90B
Alternatively Known As: Brass Hazardous Cable Gland M90, Armoured Cable Gland IP66/68, Hazardous Area Cable Gland, Ex Cable Gland M90
Technical Specifications
- Cable Diameter Range: 81.0-90.0 mm
- Ingress Protection: IP66/68 (30 meters underwater)
- Hazardous Area Ratings: Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC
- Standards Compliance: IEC/AS/NZS 60079 (.0, .1, .7, .31), IEC 60529, AS 1939-1990
- Locknut: Supplied as standard
- Certificate Numbers: IEC Ex TSA 13.0001, ANZ Ex 13.3000
- Dimensions (H x L x W): 90mm x 90mm x 90mm
- Weight: 1.2 kg
Key Features
- Suitable for armoured cables with diameter 81-90mm
- Provides a secure seal on cable sheath and clamps steel wire armour (SWA)
- Certified for hazardous environments with Ex db I/IIC, Ex eb I/IIC, Ex ta IIIC ratings
- High ingress protection rated IP66/68 (30m underwater)
- Includes locknut as standard for secure installation
- Certified to IEC Ex TSA 13.0001 and ANZ Ex 13.3000 standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician trained in hazardous area cable gland installation to ensure compliance with safety standards.
Applications
- Industrial hazardous area cable sealing
- Armoured cable installations in explosive atmospheres
- Indoor and outdoor electrical cable protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable brass construction reduces need for frequent replacements, minimizing waste
- Seals cables effectively to prevent ingress of dust and water, protecting electrical systems and reducing environmental hazards
Warranty Information
Warranty coverage as per Wattmaster standard terms and conditions; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Brass Hazardous IP66/68 M90 Armoured Cable Gland is available for immediate purchase, ideal for hazardous area electrical installations requiring robust cable sealing solutions.
