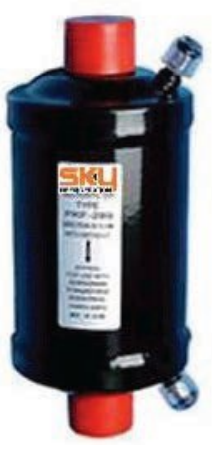

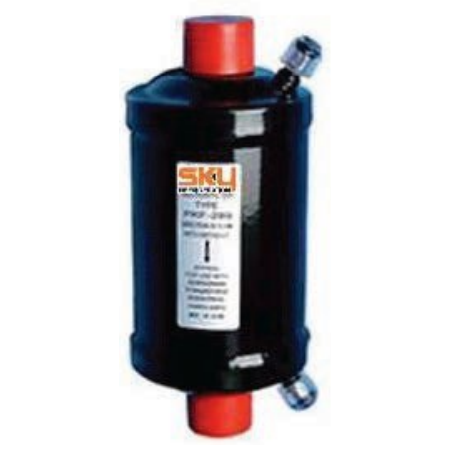

Burnout Clean-up Filter Driers | Solid Core Block | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps
Burnout Clean-up Filter Driers are essential for HVAC and refrigeration systems, featuring a solid core block for superior moisture and contaminant absorption. Designed for R-22, R-410A, R-404A, and R-134A refrigerants, these filter driers enhance system efficiency and prolong equipment life, making them ideal for both industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Burnout Clean-up Filter Driers | Solid Core Block | Anti-Corrosion Finish | Dual Access Ports | by Aspen Pumps
Brand: Aspen Pumps
SKU: 303-306S
Alternatively Known As: Filter Drier, Refrigeration Filter Drier, Burnout Filter Drier, Solid Core Filter Drier
Technical Specifications
- Connection: 3/4 inch SOL - Dual Access
- Lay-in length: 239 mm
- Diameter: 78 mm
- Capacity kW R-22/410A: 22 kW
- Capacity kW R-404A: 19 kW
- Capacity kW R-134A: 14 kW
- Safe Working Pressure (SWP): 3,200 kPa
- Core Composition: 60% MS, 35% AL, 5% AC solid core block
- Finish: Anti-corrosion powder coat with chrome flare or solid copper connections
- Dimensions (H x L x W): 78mm x 239mm x 78mm
- Weight: 1.5 kg
Key Features
- Solid core block composed of 60% MS, 35% AL, and 5% AC for superior acid, wax, and moisture absorption
- Membrane filter element removes and retains all harmful particles
- Anti-corrosion powder coat finish with chrome flare or solid copper connections
- Dual access ports for monitoring pressure drop and contaminant accumulation
- Manufactured in accordance with ISO/AS 5149.2 with a Safe Working Pressure (SWP) of 3,200 kPa
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed professional is recommended to ensure compliance with safety standards and optimal system performance.
Applications
- HVAC systems requiring filtration and moisture removal
- Refrigeration systems using R-22, R-410A, R-404A, and R-134A refrigerants
- Industrial and commercial pressure vessel filtration
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Enhances system efficiency by preventing contamination and corrosion
- Prolongs equipment life, reducing waste and resource consumption
- Supports refrigerant system integrity, minimizing leaks and environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Burnout Clean-up Filter Driers (Solid Core) are available for immediate purchase, ideal for HVAC and refrigeration system maintenance and protection.
