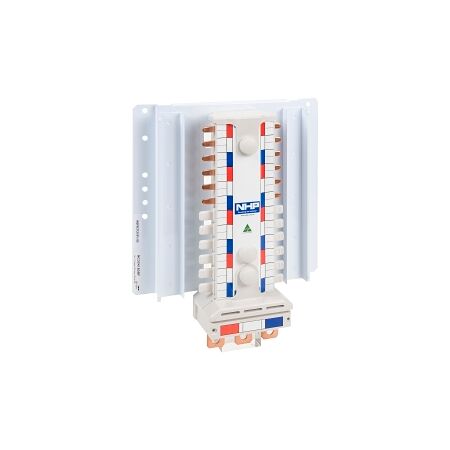

Busbar Chassis 250A 96 Way | 3-Phase Bottom Feed | IP20 Protection by NHP
Busbar chassis with 250A rated current and 96 poles—ideal for industrial and commercial power distribution. Built for durability with encapsulated material housing and IP20 protection, ensuring efficient and safe electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: NHP POWERMAX DIN-T NC Busbar Chassis 250A 96 Way 3Pole Bottom Feed
Brand: NHP
SKU: NC296183BF
Alternatively Known As: NHP Busbar Chassis, 250A Busbar, DIN-T Busbar System
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 96
- Nominal Voltage: 415 V
- Short Time Withstand Current (ICW) 0.1 sec: 25 kA
- Short Time Withstand Current (ICW) 0.3 sec: 20 kA
- Short Time Withstand Current (ICW) 1 sec: 10 kA
- Assembly Arrangement: 18mm pitch
- Material Housing: Encapsulated material
- Degree of Protection: IP20
- Dimensions (H x L x W): 890mm x 400mm x 300mm
- Weight: 10 kg
Key Features
- 250A rated current for high power applications.
- 96 poles for extensive circuit distribution.
- 3-phase input for balanced power supply.
- Encapsulated material housing for durability.
- IP20 protection degree suitable for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Large buildings requiring robust electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient power distribution reduces energy loss and enhances system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP POWERMAX DIN-T NC Busbar Chassis 250A 96 Way 3Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and commercial power distribution systems.
