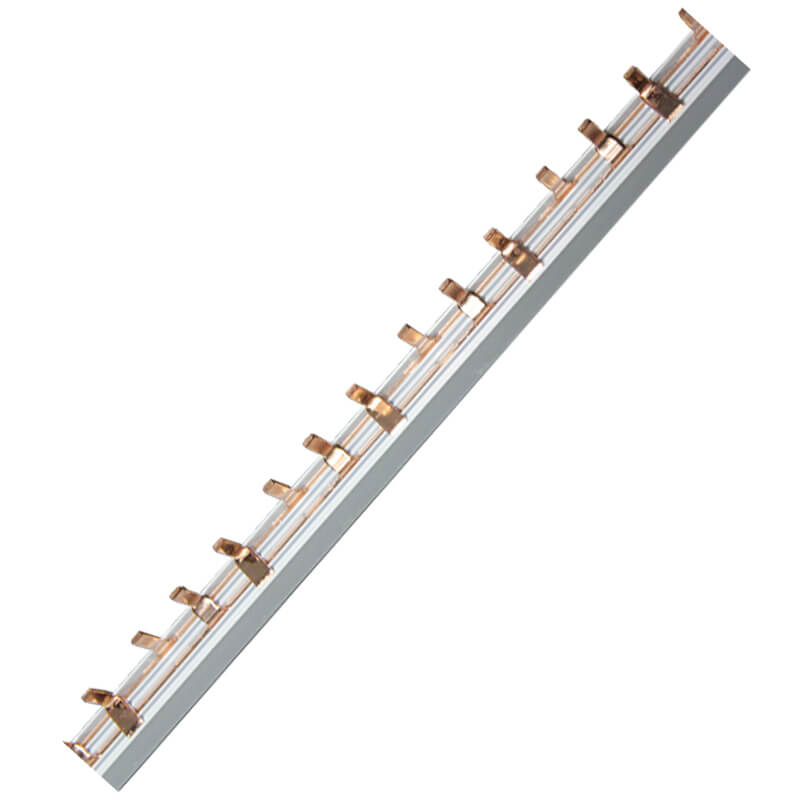

Busbar Insulated 63A Single Phase MajorTech
MajorTech busbar features 63A rating, single phase and insulated construction. Ideal for switchboard connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 63A Single-Phase Busbar, Single-Pole Insulated Busbar, DIN-Rail Pin Busbar
Technical Specifications
- Model: VBUS1P
- Rated Current: 63 A
- Phase Configuration: Single phase
- Connection Type: Pin type
- Construction: Insulated busbar
- Approximate Capacity: 54 ways
- Application: Distribution boards and switchboard connections
- Dimensions (H x L x W): 18mm x 1000mm x 10mm
- Weight: 0.18 kg
Key Features
- 63 A current rating
- Single-phase configuration
- Insulated construction for improved touch protection
- Pin-type connections for compatible circuit breakers
- Designed for compact distribution-board installations
- Suitable for switchboard circuit connections
Professional Installation Requirements
- Installation and connection to electrical switchboards must be performed by a licensed electrician in accordance with the manufacturer's instructions and applicable Australian electrical installation requirements.
Applications
- Single-phase distribution boards
- Residential switchboards
- Commercial electrical panels
- Connecting compatible DIN-mounted circuit breakers
- Compact switchboard circuit distribution
Standards & Compliance
- AS/NZS 3000:2018 is applicable to the selection and installation of busbars and switchboard wiring systems.
- AS/NZS 61439.1 and AS/NZS 61439.3 are relevant to the design, verification and assembly of low-voltage switchboards and distribution boards; compliance applies to the completed assembly rather than being confirmed for this individual busbar.
Environmental Benefits
- Compact busbar distribution can reduce the quantity of individual interconnecting conductors required within a switchboard.
- Insulated construction supports a durable installation and may reduce replacement waste when correctly installed and maintained.
Warranty Information
Major Tech states that products generally carry its applicable standard warranty from the date of purchase or delivery, subject to the published exclusions and proof-of-purchase requirements. The published extended 5-year warranty specifically lists distribution boards and enclosures; this busbar is not separately listed, so the applicable warranty should be confirmed with the distributor. ([majortech.com.au](https://www.majortech.com.au/shipping-returns))
Available Now
Available through MajorTech and authorised Australian electrical distributors.
