Button Head Needle Point Stitching Screw | Self-Piercing | Zinc Plated | White Finish | @Pack of 100 | by Wurth

BRAND: Wurth
SKU: 131004316
$29.40 List price: $36.90
100 PCS ($0.29 per PCS)
+
Button Head Needle Point Stitching Screws are designed for quick and efficient indoor fastening applications. With sharp, self-piercing needle points, these screws eliminate the need for pre-drilling, making installation fast and easy. Ideal for metal stitching and light assembly tasks, they provide a neat finish and maximum surface clamping, ensuring a secure hold in various materials.

Product Name/Title: Button Head Needle Point Stitching Screw | Self-Piercing | Zinc Plated | White Finish | @Pack of 100 | by Wurth

Brand: Wurth

SKU: 131004316

Alternatively Known As: Needle Point Stitching Screw, Button Head Stitching Screw, Self-Piercing Screw, White Head Stitching Screw

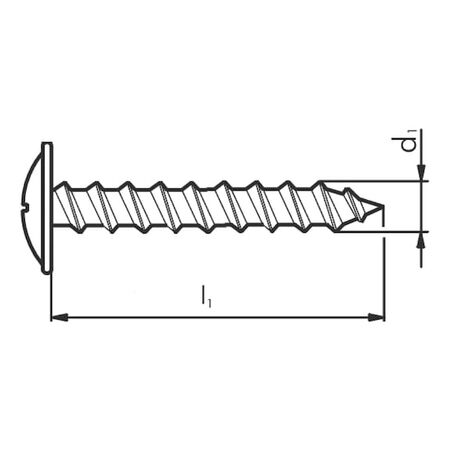

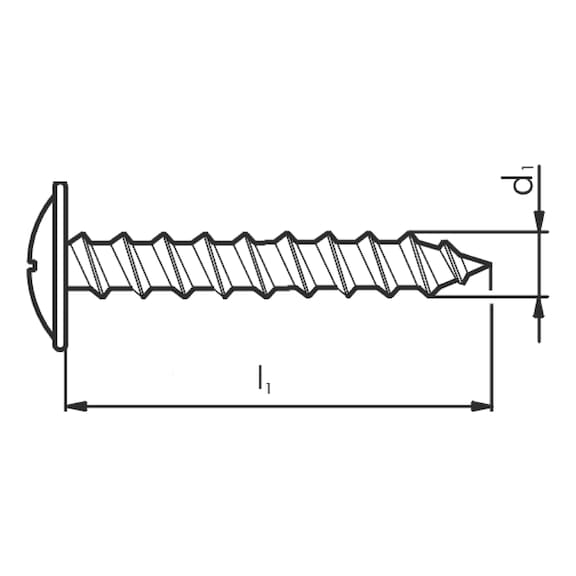

Technical Specifications
  • Material: Steel
  • Surface: Zinc plated yellow
  • RoHS-compliant: No
  • Head type: Round washer head
  • Nominal diameter: 4.2 mm
  • Length: 16 mm
  • Head diameter: 4.2 mm
  • Drive type: H
  • Internal drive: H2

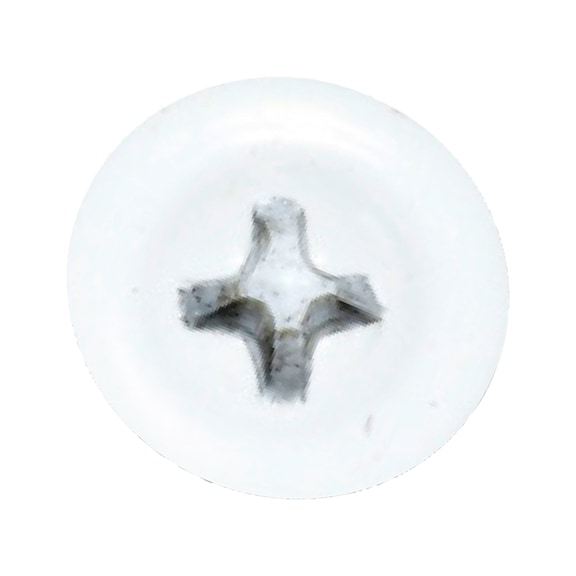

  • Colour of head: White
  • Thread type: Metric thread
  • Dimensions (H x L x W): 16mm x 16mm x 4.2mm
  • Weight: 0.05 kg
Key Features
  • Low-profile button head for a neat and streamlined appearance
  • Sharp, self-piercing needle points for fast insertion and self-centring application
  • No pre-drilling required
  • Class 2 yellow zinc finish suitable for indoor use
Professional Installation Requirements
  • Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and safety.
Applications
  • Indoor fastening applications requiring neat finish and maximum surface clamping
  • Suitable for use in metal stitching and light assembly tasks
  • Ideal for applications where pre-drilling is not feasible or desired
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Zinc plating provides corrosion resistance extending product life and reducing waste
  • No pre-drilling reduces energy and tool use during installation
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Wurth Button Head Needle Point Stitching Screws 42x16mm White 100 pcs are available for immediate purchase, ideal for indoor fastening applications requiring a neat finish and fast installation.
