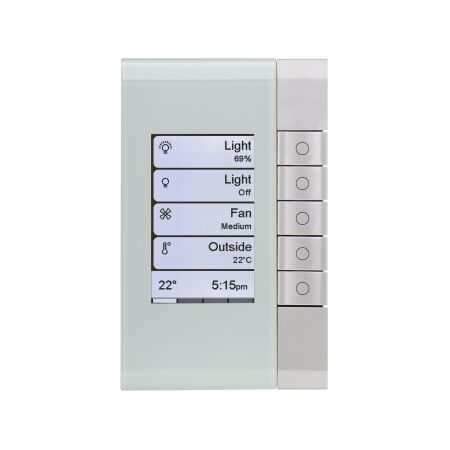

C-Bus eDLT Wall Plate 5 Key Dynamic Ocean Mist Clipsal
Clipsal C-Bus EDLT Wall Plate Key Dynamic Ocean Mist features control, 5 x push-button dual-action and C-Bus 2 wires. Ideal for homes, apartments, offices.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device application: control
- Control type: 5 x push-button dual-action
- Communication port protocol: C-Bus - 2 wires
- Connector type: mini USB port (rear)
- Clamping connection capacity: 0.2...1.5 mm²
- Fixing mode: by screws
- IP Rating: IP20
- Operating temperature: 5...45 °C
- Rated supply voltage: 15...36 V DC
- Maximum supply current: 32 mA
- User language: multi-language
- Dimensions (H x L x W): 123 mm x 77 mm x 77 mm
- Weight: 0.198 kg
Key Features
- Enhanced Dynamic Labelling Technology for intuitive control.
- 5 push-button dual-action control for various applications.
- Local signalling with tri-colour LED on push-button.
- Backlit LCD display for easy visibility.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any indoor location requiring advanced control solutions
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Compliant with RoHS directives and environmental regulations.
Warranty Information
Standard warranty applies.
Available Now
The C-Bus eDLT Wall Plate with Enhanced Dynamic Labelling Technology is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with advanced functionality.
FAQ
Q: What display does the CLI5085EDLWOM wall plate use?
A: It features a backlit LCD display with tri-colour LED signalling for the 5 key dynamic dual-action grid.
Q: What power supply does this wall plate require?
A: It runs on a rated supply voltage of 15-36V DC with a maximum supply current of 32mA over the C-Bus 2-wire network.
A matching eDLT keypad in Ocean Mist completes the control setup for this wall plate.
A C-Bus eDLT wall plate is also available in pure white with tri-colour LED for a lighter finish.
A C-Bus mounting frame is available separately for standard wall box installation.
