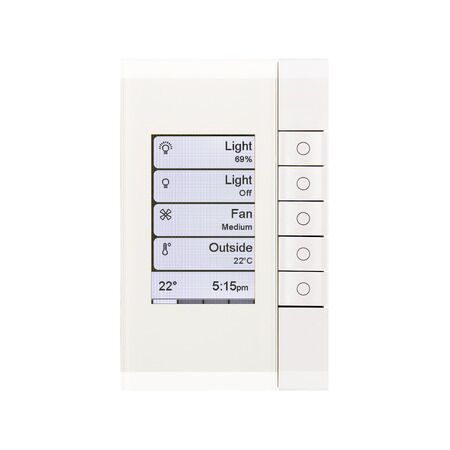

C-Bus eDLT Wall Plate 5 Key Tri-Colour LED Pure White Clipsal

BRAND: Clipsal
SKU: CLI5085EDLWPW
$753.50 List price: $939.00
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal C-Bus EDLT Wall Plate Key Tri-Colour LED Pure features control, LAN cable Cat. 5e and white finish. Local signalling with tri-colour LED on push-button.
Technical Specifications
  • Device application: control
  • Product compatibility: LAN cable Cat. 5e
  • Communication port protocol: C-Bus - 2 wires
  • Clamping connection capacity: 0.2...1.5 mm²
  • IP Rating: IP20
  • Operating temperature: 5...45 °C
  • Rated supply voltage: 15...36 V DC
  • Maximum supply current: 32 mA
  • Material: glass
  • Dimensions (H x L x W): 123 mm x 77 mm x 77 mm
  • Weight: 0.198 kg
Key Features
  • 5 x push-button dual-action control
  • Local signalling with tri-colour LED on push-button
  • Proximity sensor monitoring wake-up
  • Firmware update via mini USB port
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor location requiring control of lighting and appliances
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Compliant with RoHS directives and environmental regulations.
Warranty Information

Standard warranty applies.

Available Now

The C-Bus eDLT Wall Plate is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with advanced control features.


FAQ

Q: What is the proximity sensor wake-up feature on the CLI5085EDLWPW?

A: It's a monitoring feature that wakes the tri-colour LED push-button display when a person approaches, part of the 5 key dual-action control design.

Q: What power supply does this wall plate require?

A: It runs on a rated supply voltage of 15-36V DC with a maximum supply current of 32mA over the C-Bus 2-wire network.


A matching eDLT keypad in pure white completes the control setup for this wall plate.

A C-Bus eDLT wall plate is also available in Ocean Mist with dynamic labelling for a different finish.

A C-Bus mounting frame is available separately for standard wall box installation.

Order with confidence — SCHNAP offers a 30-day return policy on electrical products.

5085EDLW-PW (5085EDLW-PW, 208 Kb) [Download]
