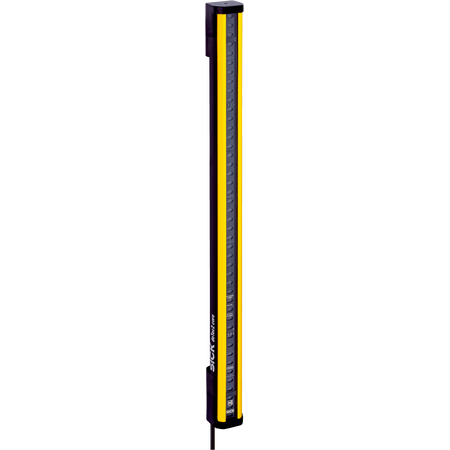

C2C-EA03010A10000 | Safety light curtains

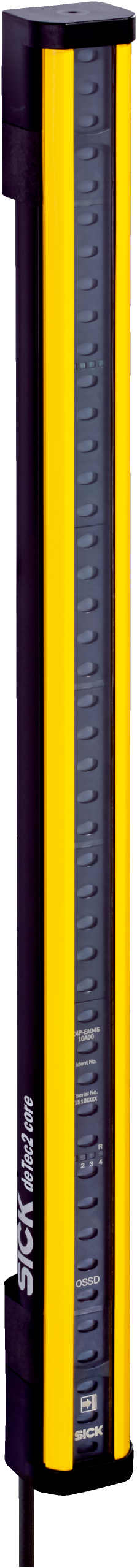

The SICK C2C-EA03010A10000 deTec2 Core Safety Light Curtain Receiver offers reliable industrial safety with 14 mm resolution, 10 m scanning range, and robust IP65/IP67 rated aluminum housing for normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EA03010A10000 | Safety light curtains
Brand: SICK
SKU: 1213188
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, deTec2 Core light curtain, SICK safety sensor
Technical Specifications
- Product version: deTec2 Core
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 300 mm
- Response time: 11 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 1.92 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 300mm x 100mm x 40mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain receiver with 14 mm resolution
- Protective field height of 300 mm and scanning range of 10 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
- Robust aluminum extruded profile housing
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring protective light curtains
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption of 1.92 W
- Durable design reduces waste and replacement frequency
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2C-EA03010A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
