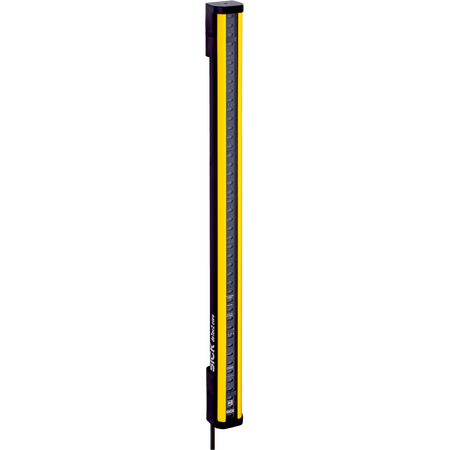

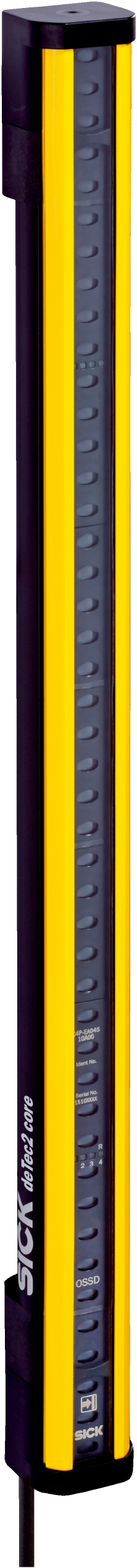

C2C-EA06010A10000 | Safety light curtains
The SICK C2C-EA06010A10000 deTec2 Core safety light curtain receiver offers reliable industrial safety with a 14 mm resolution, 10 m scanning range, and robust IP65/IP67 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EA06010A10000 | Safety light curtains
Brand: SICK
SKU: 1213192
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, machine safety sensor
Technical Specifications
- Product version: deTec2 Core
- System part: Receiver compatible with sender 1213191
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 600 mm
- Response time: 13 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD off
- System connection: M12 5-pin plug with 150 mm cable
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 2.4 W
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 600mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 600 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- Response time of 13 ms
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring protective light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste
- Energy-efficient operation with low power consumption (2.4 W typical)
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EA06010A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in normal industrial environments.
