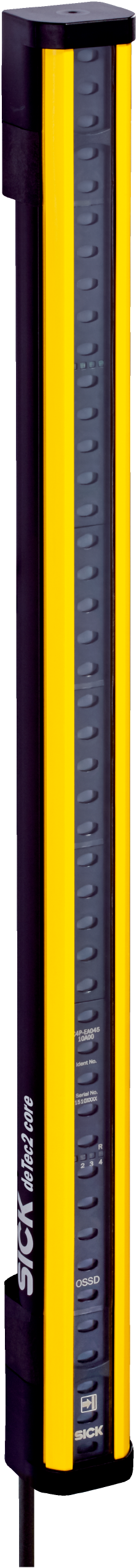

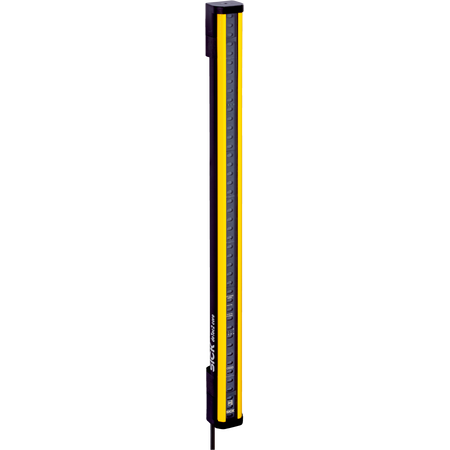

C2C-EA10530A10000 | Safety light curtains
The SICK C2C-EA10530A10000 safety light curtain receiver offers reliable Type 2 protection with a 30 mm resolution and 15 m scanning range, ideal for industrial safety and machine safeguarding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EA10530A10000 | Safety light curtains
Brand: SICK
SKU: 1213211
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine guarding light curtain
Technical Specifications
- Product version: deTec2 Core
- System part: Receiver compatible with sender model 1213210
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,050 mm
- Response time: 11 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD off
- System connection: M12 5-pin plug with 150 mm cable
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.11 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1100mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain receiver with 30 mm resolution
- Protective field height of 1,050 mm and scanning range up to 15 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Response time of 11 ms
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Industrial safety applications in normal industrial environments
- Machine safeguarding to protect personnel from hazardous machine movements
- Automation systems requiring reliable presence detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 2.11 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS directives limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C2C-EA10530A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety and machine guarding applications.
