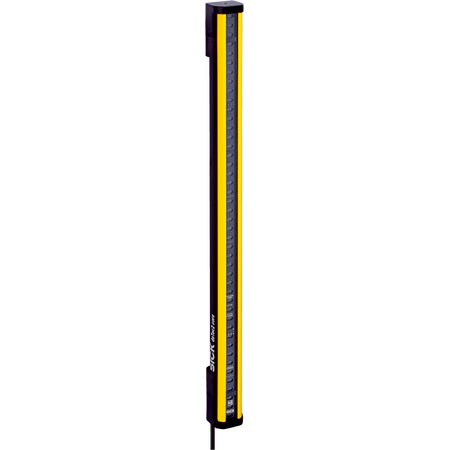

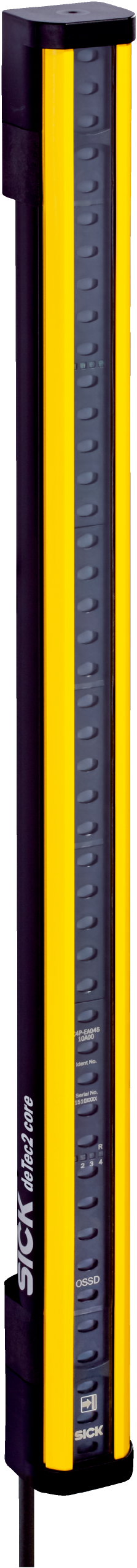

C2C-EA15010A10000 | Safety light curtains
The SICK C2C-EA15010A10000 safety light curtain receiver provides reliable industrial safety with a 14 mm resolution and 10 m scanning range, designed for normal industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EA15010A10000 | Safety light curtains
Brand: SICK
SKU: 1216122
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, machine safety sensor
Technical Specifications
- Product version: deTec2 Core
- System part: Receiver compatible with sender model 1216121
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,500 mm
- Response time: 18 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable
- Power consumption: 3.84 W DC
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 1500mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain receiver with 14 mm resolution
- Protective field height of 1,500 mm and scanning range of 10 m
- No blind zones with optical synchronization
- Automatic calibration of protective field width
- Response time of 18 ms
- LED display elements for status indication
- Short-circuit protected, cross-circuit monitored PNP semiconductor outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Industrial safety for machinery and automation
- Normal industrial environments requiring protective light curtains
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C2C-EA15010A10000 safety light curtain receiver is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
