C2C-EG04510A10000 | Safety light curtains

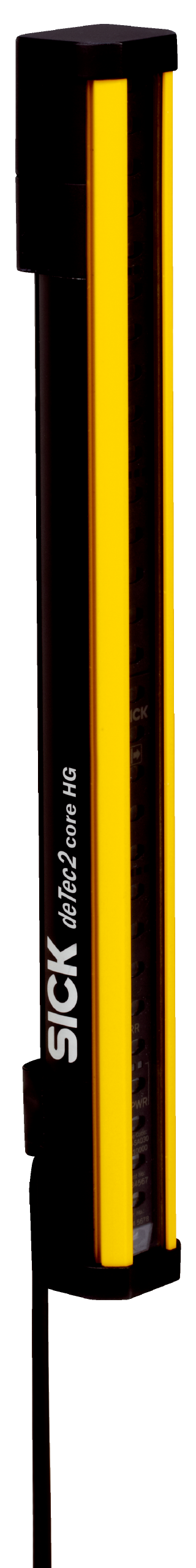

The SICK C2C-EG04510A10000 Safety Light Curtain Receiver deTec2 Core HG offers reliable Type 2 safety protection with a 14 mm resolution and 10 m scanning range, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EG04510A10000 | Safety light curtains
Brand: SICK
SKU: 1220501
Alternatively Known As: Safety light curtain receiver, deTec2 Core safety sensor, industrial safety light barrier, machine safety curtain
Technical Specifications
- Product version: deTec2 Core HG
- System part: Receiver compatible with sender model 1220490
- Resolution: 14 mm
- Protective field height: 450 mm
- Scanning range: 10 m
- Response time: 12 ms
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: M12 5-pin plug with 150 mm cable length
- Power supply: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.16 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 450mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 14 mm with a protective field height of 450 mm
- Scanning range up to 10 m with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- Response time of 12 ms
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Safety monitoring in areas where coolants, lubricants, and cleaning agents are used
- Industrial automation safety
- Machine guarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces replacement frequency and waste
- Energy-efficient operation with low power consumption (2.16 W typical)
- Supports safer industrial environments reducing accident-related environmental impacts
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EG04510A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
