C2C-EG06010A10000 | Safety light curtains

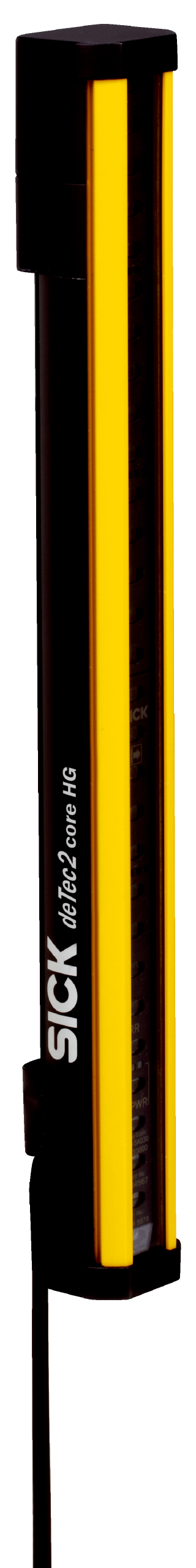

The SICK C2C-EG06010A10000 Safety Light Curtain Receiver deTec2 Core HG offers reliable personnel protection with a 600 mm protective field height, 14 mm resolution, and robust IP65/IP67 rated housing for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EG06010A10000 | Safety light curtains
Brand: SICK
SKU: 1220502
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine guarding light curtain, optical safety barrier
Technical Specifications
- Product version: deTec2 Core HG
- System part: Receiver compatible with sender model 1220491
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 600 mm
- Response time: 13 ms
- No blind zones
- Synchronization: Optical
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Cable bend radius: Stationary > 12x cable diameter, Flexible > 15x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 2.4 W typical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 600mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 14 mm with a protective field height of 600 mm
- Scanning range up to 10 m with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- Response time of 13 ms
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Safety monitoring in areas where coolants, lubricants, and cleaning agents are used
- Industrial automation safety
- Machine guarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 2.4 W supports energy efficiency
- Robust protection against harsh environments extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK C2C-EG06010A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
