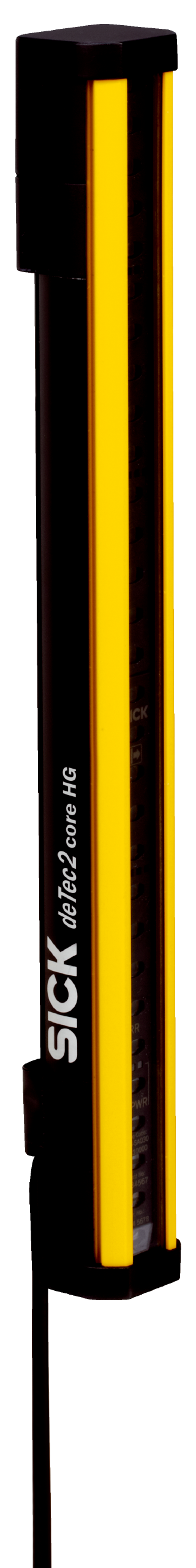

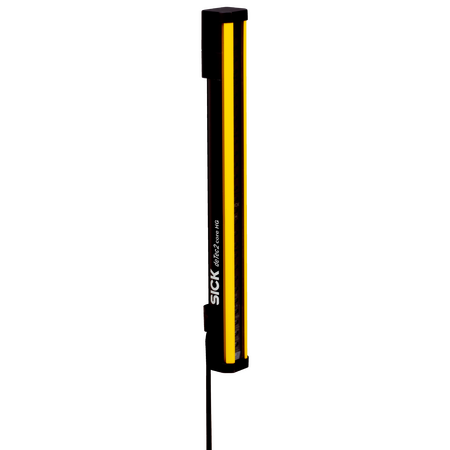

C2C-EG09010A10000 | Safety light curtains
The SICK C2C-EG09010A10000 Safety Light Curtain Receiver deTec2 Core HG offers reliable Type 2 safety protection with a 14 mm resolution and 10 m scanning range, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EG09010A10000 | Safety light curtains
Brand: SICK
SKU: 1220504
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, deTec2 Core safety sensor, SICK safety sensor receiver
Technical Specifications
- Dimensions (H x L x W): 900mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Receiver unit compatible with sender model 1220493
- Resolution of 14 mm and scanning range up to 10 m
- Protective field height of 900 mm with no blind zones
- Response time of 14 ms with optical synchronization
- Automatic calibration of protective field width
- LED display elements for status indication
- Housing made of aluminum extruded profile with chemically prestressed float glass front screen
- Protection class III with supply voltage 24 V DC and power consumption of 2.88 W
- Output with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- High environmental resistance: IP65/IP67 rated, operating temperature -30°C to +55°C
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding requiring optical synchronization and no blind zones
- Use in environments needing Type 2 safety light curtains with SIL 1 and PL c performance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable aluminum housing and chemically prestressed glass increase product lifespan reducing waste
- Low power consumption of 2.88 W reduces energy usage
- High protection ratings (IP65/IP67) ensure reliability in harsh environments minimizing replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official documentation for details.
Available Now
The SICK C2C-EG09010A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable presence detection and machine safeguarding.
