C2C-EG16510A10000 | Safety light curtains

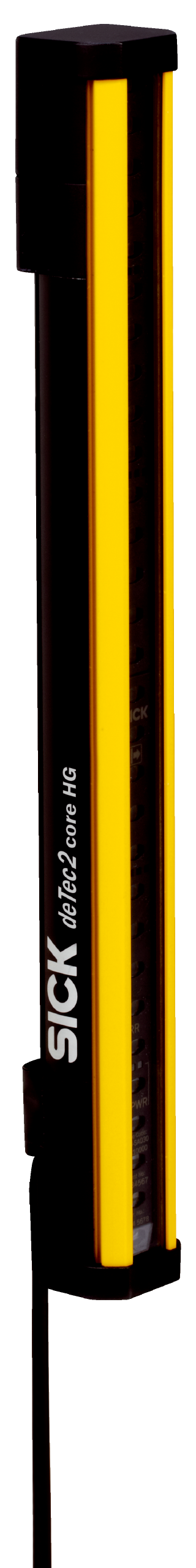

The SICK C2C-EG16510A10000 Safety Light Curtain Receiver deTec2 Core HG offers reliable safety monitoring with a 14 mm resolution and 10 m scanning range, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EG16510A10000 | Safety light curtains
Brand: SICK
SKU: 1220509
Alternatively Known As: Safety light curtain receiver, deTec2 Core safety sensor, industrial safety light barrier
Technical Specifications
- Product version: deTec2 Core HG
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 4.08 W DC
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Response time: 19 ms
- Enclosure rating: IP65 and IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Receiver unit compatible with sender model 1220498
- Resolution of 14 mm with a scanning range of 10 m
- Protective field height of 1,650 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance of 5 to 150 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards.
Applications
- Safety monitoring in areas where coolants, lubricants, and cleaning agents are used
- Industrial automation safety
- Machine guarding and personnel protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of 4.08 W DC
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EG16510A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
