C2C-EG19530A10000 | Safety light curtains

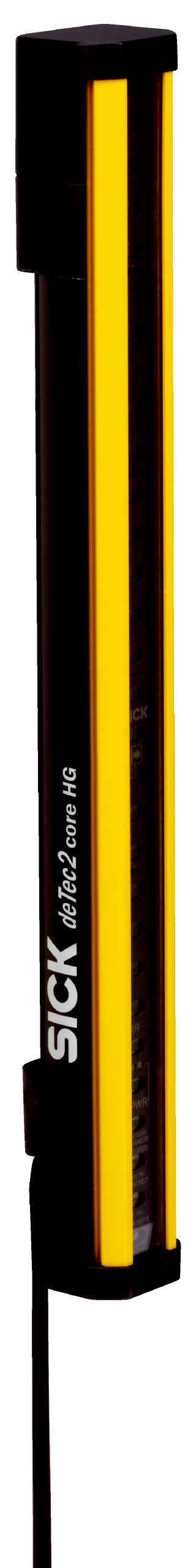

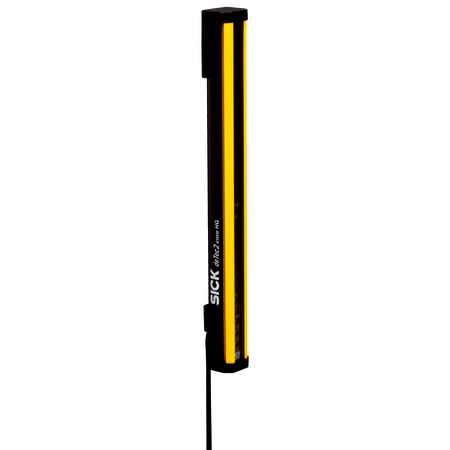

The SICK C2C-EG19530A10000 Safety Light Curtain Receiver deTec2 Core HG offers reliable safety monitoring with a 15 m scanning range and 1,950 mm protective height, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EG19530A10000 | Safety light curtains
Brand: SICK
SKU: 1221101
Alternatively Known As: Safety light curtain receiver, deTec2 Core safety sensor, industrial safety light barrier, machine safety curtain
Technical Specifications
- Dimensions (H x L x W): 1950mm x 40mm x 50mm
- Weight: 3.5 kg
Key Features
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,950 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- LED display elements for status indication
- Short response time of 14 ms
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High protection rating of IP65 and IP67
- Wide ambient operating temperature range from –30 °C to +55 °C
- Shock resistance of 15 g / 6 ms and vibration resistance compliant with EN 60068-2-6
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Safety monitoring in areas where coolants, lubricants, and cleaning agents are used
- Industrial automation safety
- Machine guarding and personnel protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of 2.69 W DC
- Compliance with China RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C2C-EG19530A10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring reliable personnel protection.
