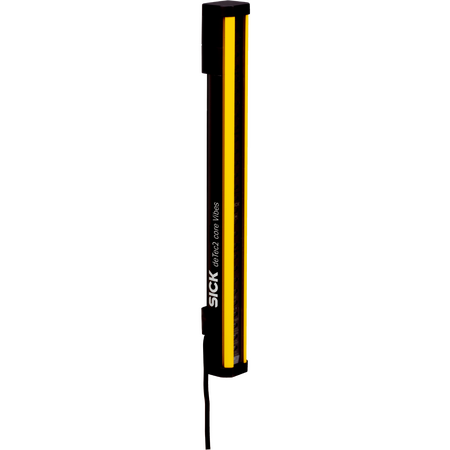

C2C-EV04530B10000 Safety light curtains

BRAND: SICK
SKU: 1223214
$1,261.50 List price: $1,585.50
+ −
30 Days Return Electricians Unlock Trade Access

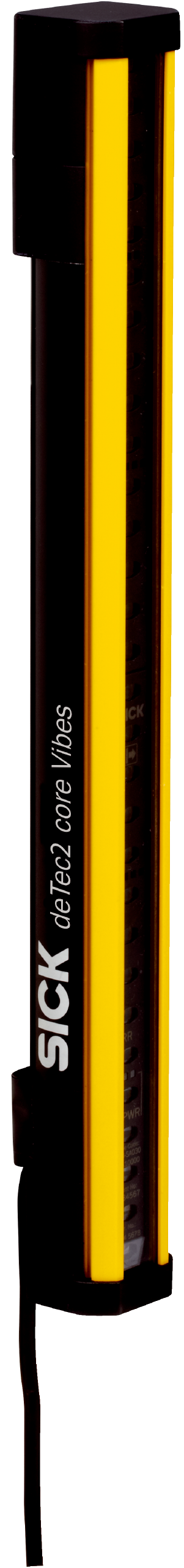

The SICK C2C-EV04530B10000 Safety Light Curtain Receiver, deTec2 Core Vibes version, is designed for machines with strong shock or vibration loads

Product Name/Title: C2C-EV04530B10000 | Safety light curtains

Brand: SICK

SKU: 1223214

Alternatively Known As: Safety light curtain receiver, deTec2 Core Vibes safety sensor, SICK safety light barrier

Technical Specifications
  • Type: Type 2 (IEC 61496-1)
  • Safety integrity level: SIL 1 (IEC 61508)
  • Category: Category 2 (ISO 13849-1)
  • Performance level: PL c (ISO 13849-1)
  • PFHD: 31.0 x 10^-9
  • Mission time: 20 years (ISO 13849-1)
  • Safe state on fault: At least one OSSD is OFF
  • System connection: Plug, M12, 5-pin
  • Cable length: 150 mm
  • Cable diameter: 4.3 mm
  • Cable bend radius stationary: > 12 x cable diameter
  • Cable bend radius flexible: > 15 x cable diameter
  • Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
  • ON state voltage: 24 V DC (VS – 2.25 V DC ... VS)
  • OFF state voltage: ≤ 2 V DC
  • Current capacity per OSSD: ≤ 300 mA
  • Enclosure rating: IP65 and IP67
  • Operating temperature range: –30 °C to +55 °C
  • Storage temperature range: –30 °C to +70 °C
  • Humidity: 15% to 95%, non-condensing
  • Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
  • Shock resistance: 15 g / 6 ms
  • Dimensions (H x L x W): 450mm x 100mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Product version: deTec2 Core Vibes
  • Resolution: 30 mm
  • Scanning range: 3.8 m
  • Protective field height: 450 mm
  • Response time: 10 ms
  • No blind zones
  • Optical synchronization
  • LED display elements
  • Housing material: Aluminum extruded profile
  • Protection class III (IEC 61140)
  • Supply voltage: 24 V DC (19.2 V ... 28.8 V)
  • Power consumption typical: 1.73 W (DC)
  • Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
  • Enclosure rating: IP65 and IP67 (IEC 60529)
  • Ambient operating temperature: –30 °C to +55 °C
  • Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
  • Shock resistance: 15 g / 6 ms
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with safety light curtain systems and electrical safety standards to ensure proper setup and compliance.
Applications
  • Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Low power consumption of 1.73 W reduces energy usage
  • Durable aluminum housing extends product life and reduces waste
  • High reliability reduces need for frequent replacements
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK C2C-EV04530B10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machinery safety applications requiring robust protection against shock and vibration.
