C2C-EV09030B10000 | Safety light curtains

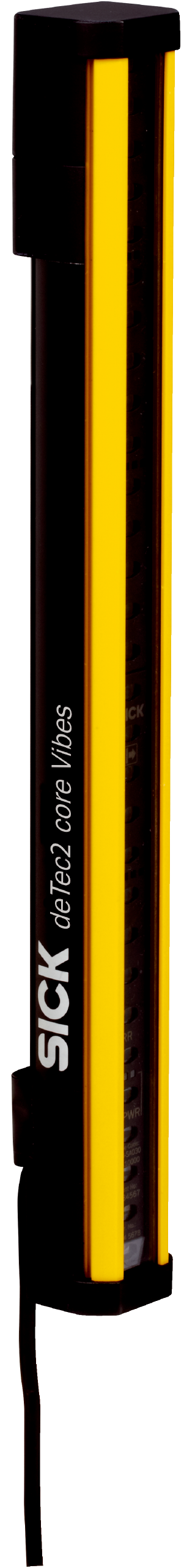

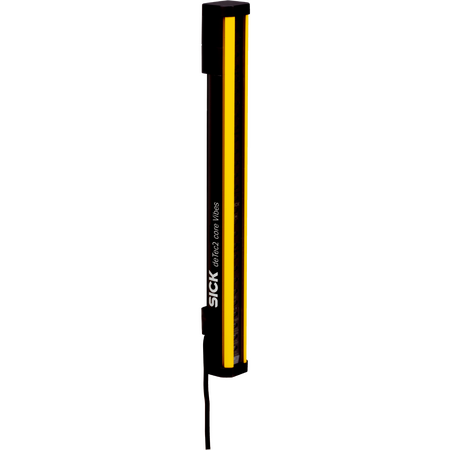

The SICK C2C-EV09030B10000 Safety Light Curtain Receiver is designed for machines exposed to strong shock or vibration loads, providing reliable and precise safety detection with a 30 mm resolution and 3.8 m scanning range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EV09030B10000 | Safety light curtains
Brand: SICK
SKU: 1223218
Alternatively Known As: Safety light curtain receiver, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Product version: deTec2 Core Vibes
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state in fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Cable bend radius: Stationary > 12x cable diameter, Flexible > 15x cable diameter
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 900mm x 100mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm for precise detection
- Scanning range of 3.8 m with a protective field height of 900 mm
- Response time of 11 ms ensuring quick safety response
- No blind zones for comprehensive protection
- Optical synchronization for reliable operation
- LED display elements for status indication
- Housing made from durable aluminum extruded profile
- High vibration and shock resistance (5-150 Hz, 3.5 mm / 1 g and 15 g / 6 ms)
- Enclosure rating IP65 and IP67 for robust environmental protection
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtain systems and electrical safety standards.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 2.02 W reduces energy usage
- Complies with China RoHS ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EV09030B10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machine safety applications requiring robust shock and vibration resistance.
