C2C-EV15030C10000 | Safety light curtains

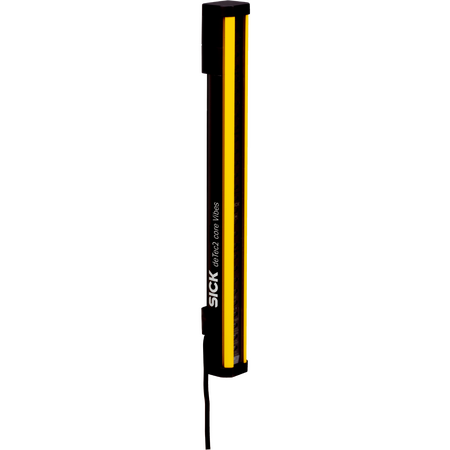

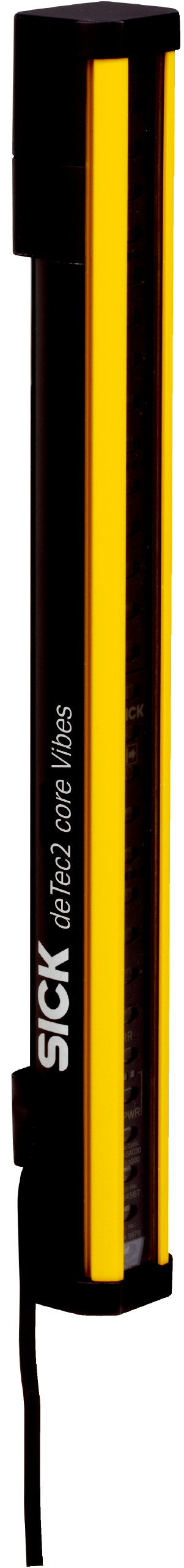

The SICK C2C-EV15030C10000 Safety Light Curtain Receiver is designed for machines exposed to strong shock or vibration loads, providing reliable protective operation with a 6 m scanning range and 30 mm resolution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-EV15030C10000 | Safety light curtains
Brand: SICK
SKU: 1128204
Alternatively Known As: Safety light curtain receiver, safety light barrier, machine safety sensor, optical safety curtain
Technical Specifications
- Product version: deTec2 Core Vibes
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- Mean probability of dangerous failure per hour (PFHD): 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin with 150 mm cable length
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Output signal: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Dimensions (H x L x W): 1500mm x 60mm x 50mm
- Weight: 2.5 kg
Key Features
- Resolution of 30 mm for precise detection
- Scanning range up to 6 m
- Protective field height of 1,500 mm
- Response time of 13 ms
- No blind zones ensuring full coverage
- Optical synchronization for reliable operation
- LED display elements for status indication
- Housing made of durable aluminum extruded profile
- High vibration and shock resistance (5-150 Hz, 3.5 mm / 1 g; 15 g / 6 ms)
- Enclosure rating IP65 and IP67 for robust protection
- Power consumption typically 2.4 W at 24 V DC
- Output with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-EV15030C10000 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial machine safety applications requiring robust protection against shock and vibration.
