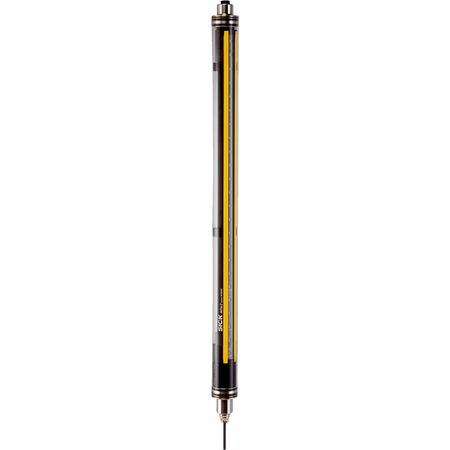

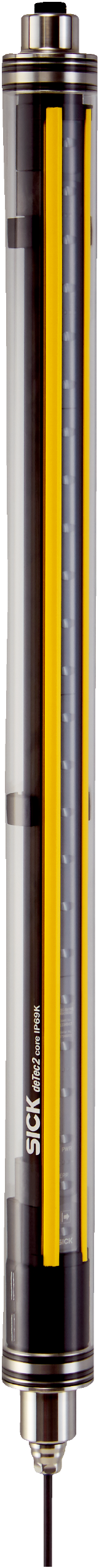

C2C-SB12030A10000 | Safety light curtains
The SICK C2C-SB12030A10000 safety light curtain sender with IP69K protection is designed for hygienic areas, providing reliable machine safeguarding with a 12.5 m scanning range and 30 mm resolution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SB12030A10000 | Safety light curtains
Brand: SICK
SKU: 1219521
Alternatively Known As: Safety light curtain sender, IP69K safety light barrier, machine safety light curtain, SICK light curtain sender
Technical Specifications
- Product version: deTec2 Core IP69K
- System part: Sender
- Compatible receiver: 1219522
- Resolution: 30 mm
- Scanning range: 12.5 m
- Protective field height: 1,200 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: 15 m PUR halogen-free cable, 5-wire, 0.34 mm² conductor cross section
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.1 W
- Enclosure rating: IP65, IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Material: PMMA housing, stainless steel 1.4404 end caps and cable glands with silicone seal, PA 6 compensating element
- Light type: Near-infrared (850 nm), invisible
- Dimensions (H x L x W): 1200mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 12.5 m
- Protective field height of 1,200 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of the protective field width
- IP69K rated protective housing suitable for harsh environments
- LED display elements for status indication
- Robust stainless steel end caps and cable glands with silicone seal
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper integration and compliance.
Applications
- Areas with special hygiene requirements
- Industrial safety applications requiring protective light curtains
- Machine safeguarding and access protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP69K housing reduces need for frequent replacements
- Low power consumption at 1.1 W typical reduces energy usage
- Halogen-free PUR cable material supports environmental safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK C2C-SB12030A10000 safety light curtain sender is available for immediate purchase, ideal for hygienic and industrial safety applications requiring reliable machine safeguarding.
