C2C-SG15030A10000 | Safety light curtains

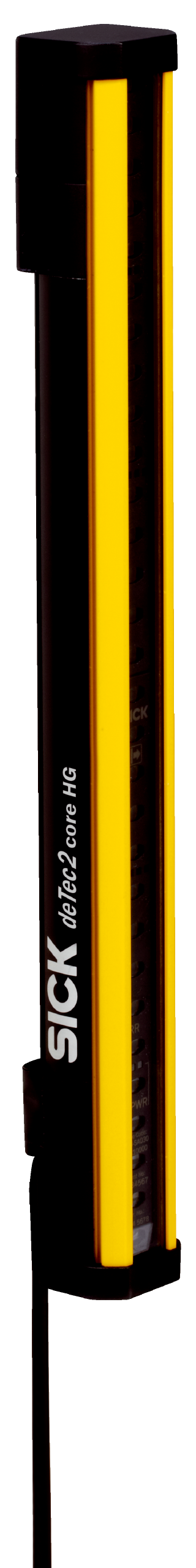

The SICK C2C-SG15030A10000 Safety Light Curtain Sender provides reliable Type 2 safety protection with a 1.5 m protective field height and 15 m scanning range, ideal for industrial environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SG15030A10000 | Safety light curtains
Brand: SICK
SKU: 1220519
Alternatively Known As: Safety light curtain sender, optical safety barrier, industrial safety sensor, SICK safety curtain
Technical Specifications
- Product version: deTec2 Core HG
- Application: Areas with coolants, lubricants, and cleaning agents
- System part: Sender
- Compatible receiver: 1220530
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,500 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Cable bend radius stationary: > 12 x cable diameter
- Cable bend radius flexible: > 15 x cable diameter
- Display elements: LEDs
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.2 W (DC)
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65, IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g (EN 60068-2-6)
- Shock resistance: 15 g / 6 ms (EN 60068-2-27)
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 1500mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Type 2 safety light curtain according to IEC 61496-1
- Resolution of 30 mm with a scanning range of 15 m
- Protective field height of 1,500 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant according to EN standards
Professional Installation Requirements
- Installation by qualified safety and electrical professionals is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding to prevent access to hazardous zones
- Automation systems requiring optical safety barriers
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces waste and replacement frequency
- Low power consumption of 1.2 W reduces energy usage
- Compliance with multiple international environmental and safety standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK C2C-SG15030A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications requiring reliable presence detection and machine safeguarding.
