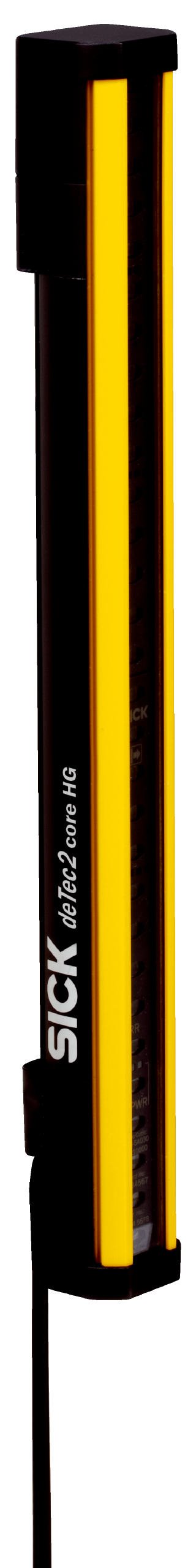

C2C-SG21030A10000 | Safety light curtains
The SICK C2C-SG21030A10000 Safety Light Curtain Sender offers reliable industrial safety with a 15 m scanning range and 2100 mm protective height, designed for harsh environments with coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SG21030A10000 | Safety light curtains
Brand: SICK
SKU: 1221108
Alternatively Known As: Safety light curtain sender, Safety light barrier, Industrial safety sensor, Machine safety light curtain
Technical Specifications
- Product version: deTec2 Core HG
- System part: Sender
- Compatible receiver: 1221109
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 2100 mm
- No blind zones: Yes
- Synchronization: Optical synchronization
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Power consumption typical: 1.39 W
- Housing material: Aluminum extruded profile
- Front screen material: Chemically prestressed float glass
- Enclosure rating: IP65 and IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (NIR), invisible
- Wavelength: 850 nm
- Dimensions (H x L x W): 2100mm x 40mm x 50mm
- Weight: 3 kg
Key Features
- 30 mm resolution with 15 m scanning range
- Protective field height of 2100 mm with no blind zones
- Optical synchronization for reliable operation
- Automatic calibration of protective field width
- LED display elements for status indication
- Robust aluminum extruded profile housing with chemically prestressed float glass front screen
- High ingress protection rating IP65 and IP67
- Wide ambient operating temperature range from -30°C to +55°C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety in areas with coolants, lubricants, and cleaning agents
- Machine safeguarding and personnel protection
- Automation and manufacturing safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impact
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-SG21030A10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial safety applications in manufacturing and automation environments.
