C2C-SV12030C10000 | Safety light curtains

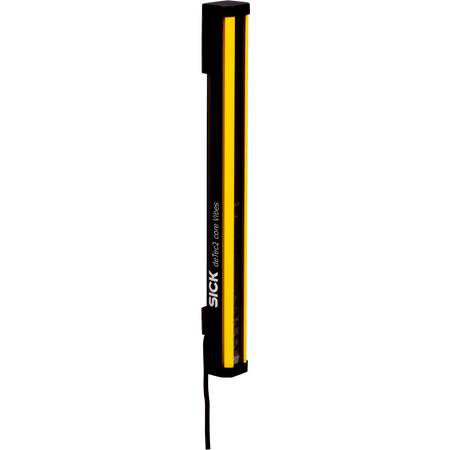

The SICK C2C-SV12030C10000 Safety Light Curtain Sender (deTec2 Core Vibes) is designed for machines with strong shock or vibration loads, providing reliable protective operation with a 6 m scanning range and 30 mm resolution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SV12030C10000 | Safety light curtains
Brand: SICK
SKU: 1120153
Alternatively Known As: Safety light curtain sender, Safety light barrier, Optical safety sensor, Machine safety light curtain
Technical Specifications
- Product version: deTec2 Core Vibes
- System part: Sender
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1,200 mm
- Synchronization: Optical synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption typical: 1.1 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 1200mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Resolution of 30 mm
- Scanning range of 6 m
- Protective field height of 1,200 mm
- No blind zones
- Optical synchronization
- LED display elements
- Aluminum extruded profile housing
- IP65 and IP67 rated enclosure
- Shock resistance of 15 g / 6 ms
- Vibration resistance 5 to 150 Hz, 3.5 mm / 1 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Machines with strong shock or vibration loads
- Industrial safety light curtain applications requiring optical synchronization and no blind zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.1 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-SV12030C10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial machine safety applications requiring robust protection under shock and vibration conditions.
