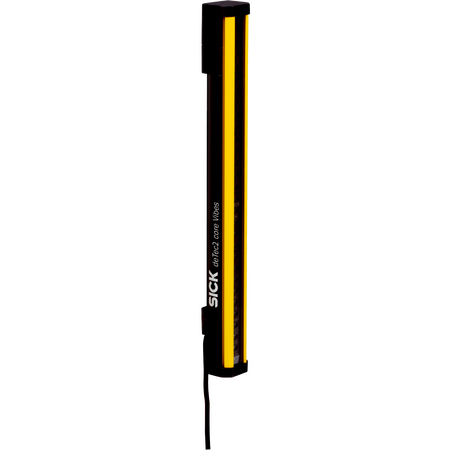

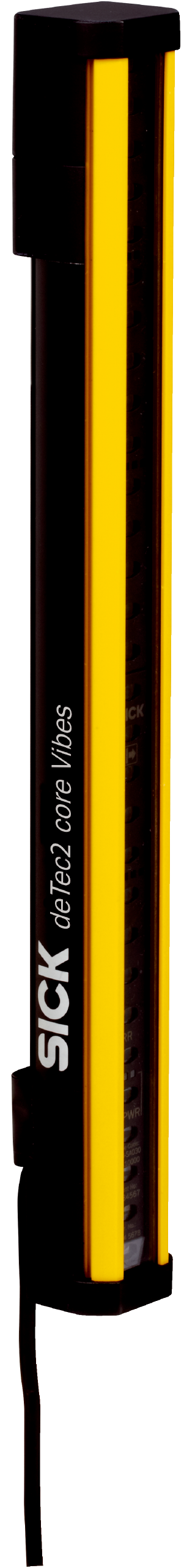

C2C-SV16530A10000 | Safety light curtains
The SICK C2C-SV16530A10000 safety light curtain sender is designed for machines with strong shock or vibration loads, providing reliable protection with a 15 m scanning range and 1,650 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SV16530A10000 | Safety light curtains
Brand: SICK
SKU: 1147747
Alternatively Known As: Safety light curtain sender, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.25 W
- Enclosure rating: IP65/IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum extruded profile
- Wavelength: 850 nm near-infrared (NIR), invisible
- System connection: Plug, M12, 5-pin with 150 mm cable length and 4.3 mm diameter
- Dimensions (H x L x W): 1650mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Product version: deTec2 Core Vibes
- Resolution: 30 mm
- Scanning range: 15 m
- Protective field height: 1,650 mm
- No blind zones
- Optical synchronization
- Automatic calibration of the protective field width
- LED display elements
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.25 W reduces energy usage
- Durable aluminum housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-SV16530A10000 safety light curtain sender is available for immediate purchase, ideal for industrial machine safety applications with high vibration and shock loads.
