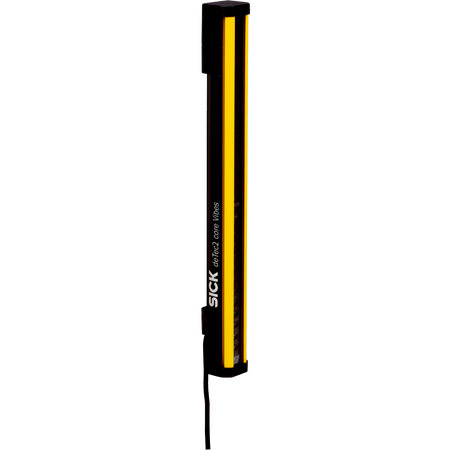

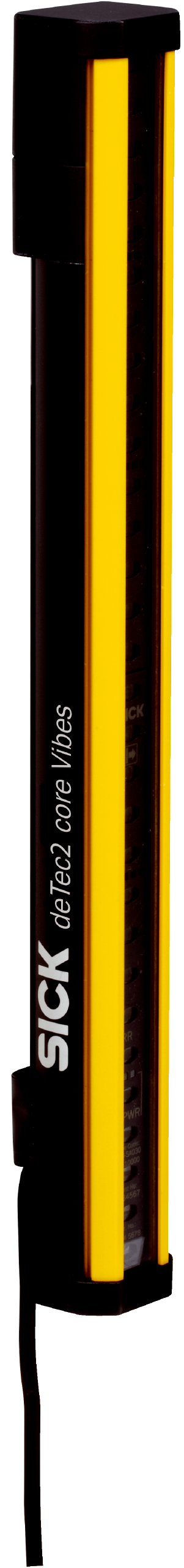

C2C-SV19530C10000 | Safety light curtains
The SICK C2C-SV19530C10000 Safety Light Curtain Sender is designed for machines with strong shock or vibration loads, providing reliable protective operation with a 6 m scanning range and 30 mm resolution.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2C-SV19530C10000 | Safety light curtains
Brand: SICK
SKU: 1122236
Alternatively Known As: Safety light curtain sender, Safety light barrier, Machine safety sensor, Optical safety curtain
Technical Specifications
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD is OFF
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 1.34 W
- Wave length: 850 nm
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 1950mm x 40mm x 50mm
- Weight: 2.5 kg
Key Features
- Product version: deTec2 Core Vibes
- Resolution: 30 mm
- Scanning range: 6 m
- Protective field height: 1,950 mm
- No blind zones
- Optical synchronization
- LED display elements
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 and IP67
- Ambient operating temperature: –30 °C to +55 °C
- Shock resistance: 15 g / 6 ms
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards.
Applications
- Machines with strong shock or vibration loads requiring safety light curtains
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of 1.34 W reduces energy use
- Durable aluminum housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK C2C-SV19530C10000 Safety Light Curtain Sender is available for immediate purchase, ideal for industrial machine safety applications with high shock and vibration.
