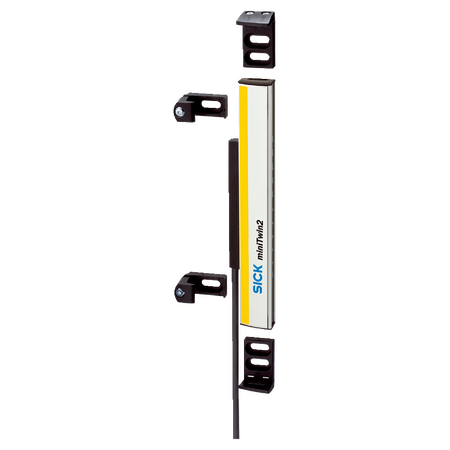

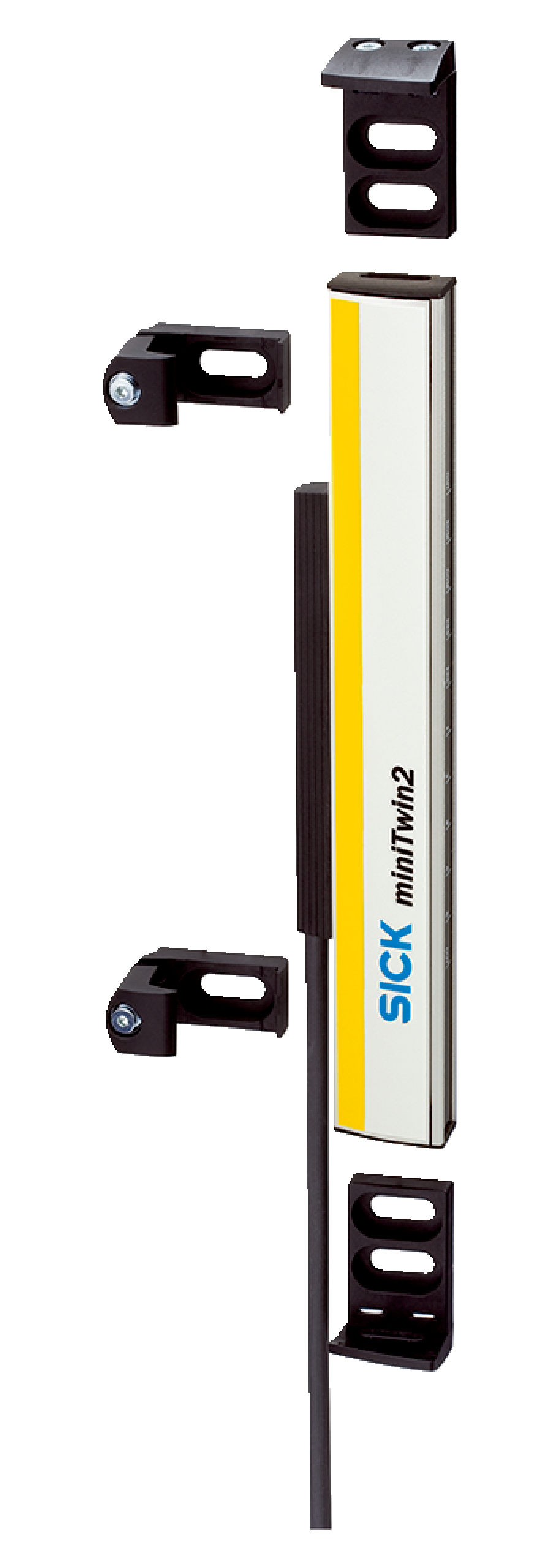

C2MT-05424BBC03DE0 | Safety light curtains
The SICK C2MT-05424BBC03DE0 Safety Light Curtains provide reliable industrial safety with a 24 mm resolution, 8 m scanning range, and robust aluminum housing rated IP65 for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-05424BBC03DE0 | Safety light curtains
Brand: SICK
SKU: 1207835
Alternatively Known As: Safety light curtain, industrial safety sensor, machine guarding light curtain, optical safety barrier
Technical Specifications
- System part: 1 Twin-Stick
- Resolution: 24 mm
- Scanning range: 0 m to 8 m typical
- Protective field height: 540 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10^-8
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- Output type: PNP semiconductor, short-circuit and cross-circuit monitored
- Operating voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: ≤ 3 A
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 195 g
- Dimensions (H x L x W): 540mm x 32mm x 15mm
- Weight: 0.195 kg
Key Features
- Twin-Stick system part
- MiniTwin2 standalone or cascade use
- Mounting with C-fix or L-fix bracket
- 24 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height 540 mm
- Response time ≤ 13 ms
- Optical synchronization without separate sync
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male M12 5-pin connector with 350 mm cable
- Hard wired configuration with LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output, short-circuit and cross-circuit monitored
- Output current capacity ≤ 300 mA per OSSD
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65
- Operating temperature -20 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Industrial safety guarding
- Machine access protection
- Automation safety systems
- Hazardous area perimeter guarding
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life reducing waste
- Non-contact sensing reduces mechanical wear and tear
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C2MT-05424BBC03DE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and machine guarding applications.
