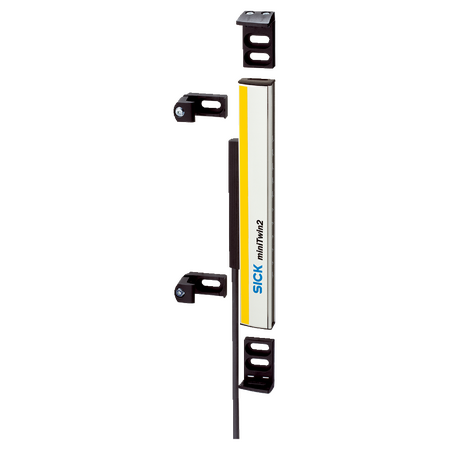

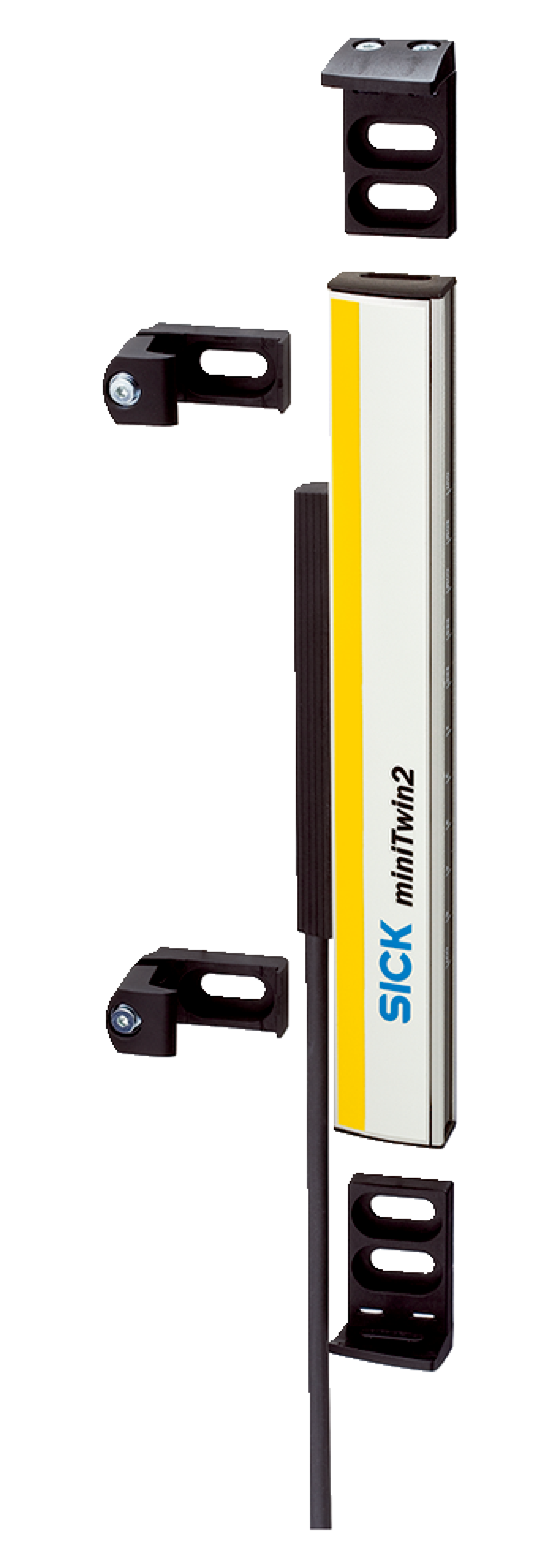

C2MT-07834BBC03FE0 | Safety light curtains
The SICK C2MT-07834BBC03FE0 Safety Light Curtains provide reliable industrial safety with a 780 mm protective field height, fast response time, and robust aluminum housing for machinery safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-07834BBC03FE0 | Safety light curtains
Brand: SICK
SKU: 1207858
Alternatively Known As: Safety light curtain, industrial safety sensor, machine guarding light curtain, optical safety barrier
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 780 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Power supply: 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption: ≤ 3 A
- Output type: PNP semiconductors, short-circuit protected, cross-circuit monitored
- Output current per OSSD: ≤ 300 mA
- Housing material: Aluminum alloy ALMGSI 0.5
- Protection class: III (EN 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 780mm x 32mm x 15mm
- Weight: 0.28 kg
Key Features
- Twin-Stick system part for flexible installation
- MiniTwin2 usable as standalone or in 2- or 3-device cascade
- Mounting with C-fix or L-fix brackets
- Resolution of 34 mm
- Protective field height of 780 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization device
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- LED display elements for status indication
- Short-circuit protected PNP semiconductor output signal switching devices (OSSDs)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety guarding for machinery
- Access protection in automated production lines
- Hazardous area perimeter guarding
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption with ≤ 3 A power usage
- Durable aluminum alloy housing for long service life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or distributor.
Available Now
The SICK C2MT-07834BBC03FE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and machine guarding applications.
