C2MT-09034BBC04FE0 | Safety light curtains

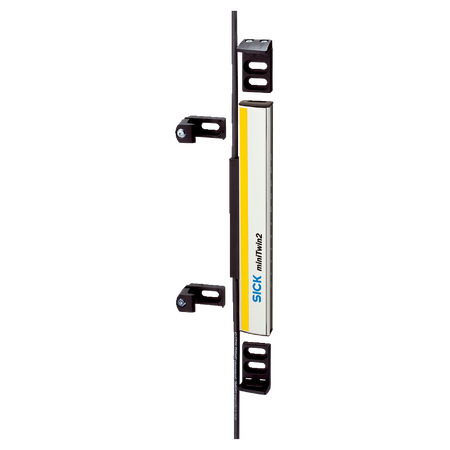

The SICK C2MT-09034BBC04FE0 Safety Light Curtain is a high-performance safety device designed for industrial applications, providing reliable protection with a 900 mm protective field height and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-09034BBC04FE0 | Safety light curtains
Brand: SICK
SKU: 1207917
Alternatively Known As: Safety light curtain, industrial safety curtain, machine safety light barrier, protective light curtain
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 as host for 2- or 3-device cascade, miniTwin2 as middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 34 mm
- Scanning range minimum: 0 m to 6 m
- Scanning range typical: 0 m to 8 m
- Protective field height: 900 mm
- Response time: ≤ 13 ms
- Synchronization: Optical, without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate (internal test): 47 /s
- Maximum demand rate: 28 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 5.2 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- Restart interlock: Yes
- External device monitoring (EDM): Yes
- Beam coding: Automatic
- System connection: Male connector M12, 5-pin, 700 mm cable
- Extension connection: Female connector M12, 5-pin, 700 mm cable
- Configuration method: Hard wired
- Display elements: LEDs
- Protection class: III (EN 61140)
- Supply voltage: 24 V DC (19.2 V DC to 28.8 V DC)
- Ripple: ≤ 10%
- Power consumption: ≤ 3 A
- Output signal switching devices: PNP semiconductors, short-circuit protected, cross-circuit monitored
- ON state voltage: 24 V DC (VS – 2.25 V DC to VS)
- OFF state voltage: ≤ 2 V DC
- Current capacity per OSSD: ≤ 300 mA
- Housing cross-section: 15 mm x 32 mm
- Housing material: Aluminum alloy ALMGSI 0.5
- Weight: 320 g
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Dimensions (H x L x W): 900mm x 32mm x 15mm
- Weight: 0.32 kg
Key Features
- Twin-Stick system part
- MiniTwin2 host for 2- or 3-device cascade and middle guest for 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution of 34 mm
- Scanning range minimum 0 m to 6 m, typical 0 m to 8 m
- Protective field height of 900 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male and female M12 5-pin connectors with 700 mm cable length
- Hard wired configuration method
- LED display elements
- Protection class III (EN 61140)
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- Power consumption ≤ 3 A
- PNP semiconductor output signal switching devices, short-circuit protected and cross-circuit monitored
- Housing made of aluminum alloy ALMGSI 0.5
- Enclosure rating IP65 (EN 60529)
- Operating temperature range -20 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Vibration resistance 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance 15 g / 6 ms
- Wave length 850 nm
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with safety light curtains and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety for machinery and automation
- Protection of personnel in hazardous areas
- Use in manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable aluminum housing extends product life and reduces waste
- Complies with RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from SICK, typically including coverage against manufacturing defects.
Available Now
The SICK C2MT-09034BBC04FE0 Safety Light Curtain is available for immediate purchase, ideal for industrial safety and machinery protection applications.
