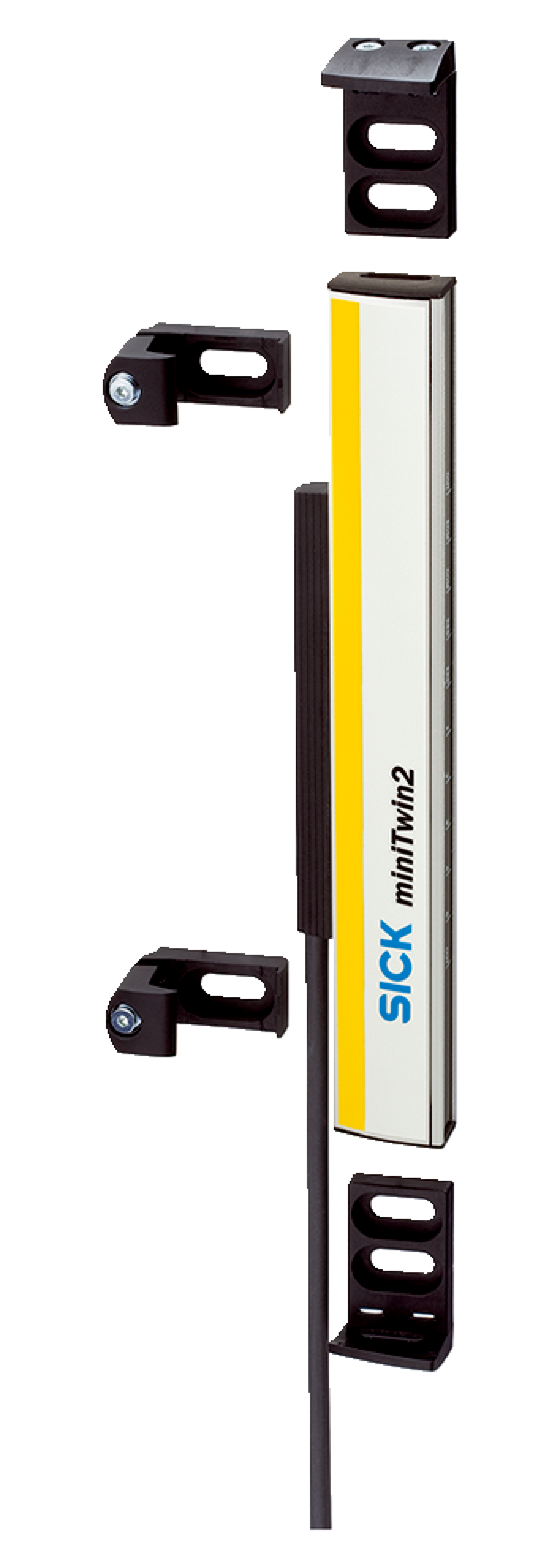

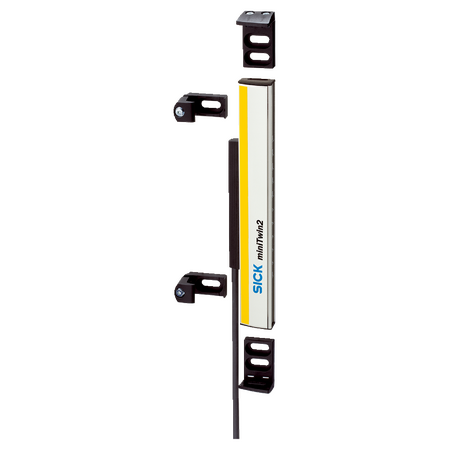

C2MT-10824BBC03FE0 | Safety light curtains
The SICK C2MT-10824BBC03FE0 Safety Light Curtains provide reliable industrial safety guarding with a 24 mm resolution, 8 m scanning range, and robust aluminum housing rated IP65 for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C2MT-10824BBC03FE0 | Safety light curtains
Brand: SICK
SKU: 1207844
Alternatively Known As: Safety light curtain, safety sensor curtain, industrial light barrier, machine safety curtain, optical safety sensor
Technical Specifications
- System part: 1 Twin-Stick
- Usage: miniTwin2 standalone or last guest in 2- or 3-device cascade
- Mounting system type: C-fix or L-fix bracket
- Resolution: 24 mm
- Scanning range: Minimum 0 m to 6 m, Typical 0 m to 8 m
- Protective field height: 1080 mm
- Response time: ≤ 13 ms
- Synchronization: Optical without separate synchronization
- Safety type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (EN ISO 13849)
- Test rate: 58/s
- Maximum demand rate: 34 min⁻¹ (EN ISO 13849)
- Performance level: PL c (EN ISO 13849)
- PFHD: 2.4 x 10⁻⁸ (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Restart interlock and external device monitoring included
- System connection: Male connector M12, 5-pin, 700 mm cable length
- Power supply: 24 V DC (19.2 V to 28.8 V), ≤ 3 A power consumption
- Output: PNP semiconductors, short-circuit and cross-circuit monitored, ≤ 300 mA per OSSD
- Housing: Aluminum alloy ALMGSI 0.5, cross-section 15 mm x 32 mm
- Enclosure rating: IP65
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 1080mm x 32mm x 15mm
- Weight: 0.38 kg
Key Features
- Twin-Stick system part
- MiniTwin2 standalone or cascade device usage
- Mounting with C-fix or L-fix bracket
- 24 mm resolution
- Scanning range typical 0 m to 8 m
- Protective field height 1080 mm
- Response time ≤ 13 ms
- Optical synchronization without separate synchronization
- Restart interlock and external device monitoring (EDM)
- Automatic beam coding
- Male connector M12, 5-pin system connection
- LED display elements
- Protection class III
- Supply voltage 24 V DC (19.2 V DC to 28.8 V DC)
- PNP semiconductor output with short-circuit and cross-circuit monitoring
- Housing made of aluminum alloy ALMGSI 0.5
- IP65 rated enclosure for dust and water protection
- Operating temperature range -20 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Industrial safety guarding
- Machine access protection
- Automation safety systems
- Manufacturing and production lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient 24 V DC operation
- Durable aluminum housing reduces waste through long product life
- IP65 rating ensures protection against dust and water, reducing failure and replacement frequency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C2MT-10824BBC03FE0 Safety Light Curtains are available for immediate purchase, ideal for industrial safety and automation applications.
