C40E-0403DB010 | Safety light curtains

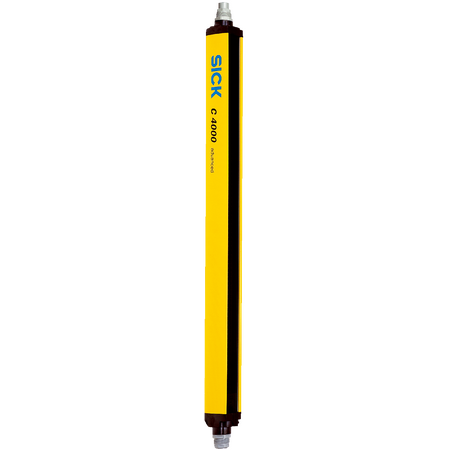

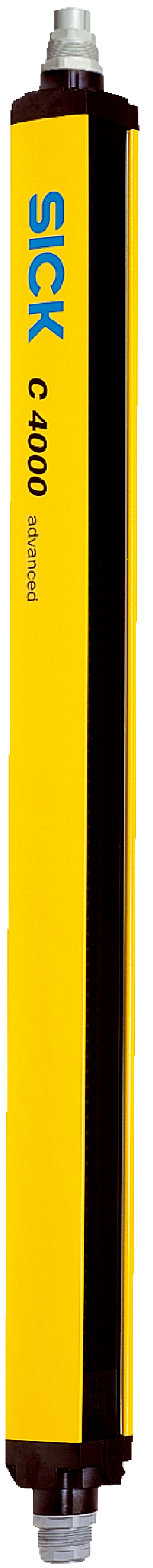

The SICK C40E-0403DB010 Safety Light Curtain Receiver is designed for normal industrial environments, offering high safety integrity with Type 4 classification and SIL 3 level, featuring a 21 m scanning range and 450 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0403DB010 | Safety light curtains
Brand: SICK
SKU: 1018850
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor
Technical Specifications
- Resolution: 30 mm
- Scanning range: 21 m
- Protective field height: 450 mm
- Response time: 10 ms
- Synchronization: Optical synchronisation
- Type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state in fault: At least one OSSD is OFF
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Dimensions (H x L x W): 48mm x 150mm x 40mm
- Weight: 1.13 kg
Key Features
- Protective operation with restart interlock and external device monitoring (EDM)
- Beam coding and configurable scanning range
- Fixed and floating blanking options
- Emergency stop/bypass at the extension connection
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety systems to ensure compliance with safety standards and optimal performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption
- Durable aluminum housing reduces material waste and extends product life
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-0403DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
