C40E-0604DB010 | Safety light curtains

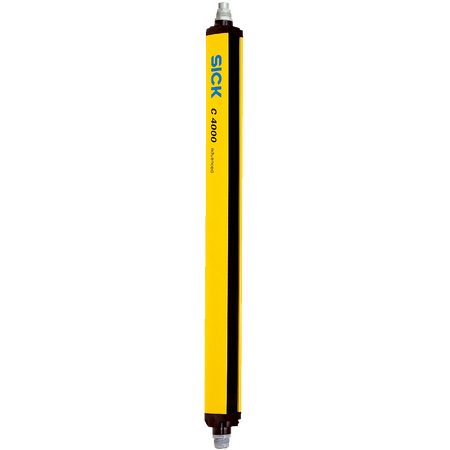

The SICK C40E-0604DB010 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and reliable protective functions with a 21 m scanning range and 600 mm protective height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0604DB010 | Safety light curtains
Brand: SICK
SKU: 1018862
Alternatively Known As: Safety light curtain receiver, Industrial safety light barrier, SICK safety sensor, Optical safety curtain
Technical Specifications
- Dimensions (H x L x W): 600mm x 40mm x 48mm
- Weight: 1.42 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 40 mm with a scanning range of 21 m
- Protective field height of 600 mm
- Response time of 10 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking, emergency stop/bypass at extension connection, and safe SICK device communication via EFI
- Interfaces with Hirschmann connectors and configuration via PC software
- Output signal switching devices with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- Housing made of aluminum extruded profile with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-0604DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
