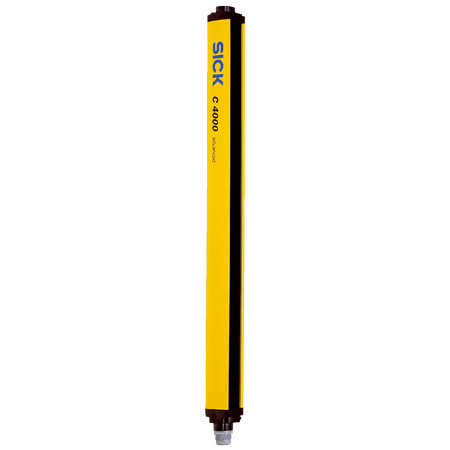

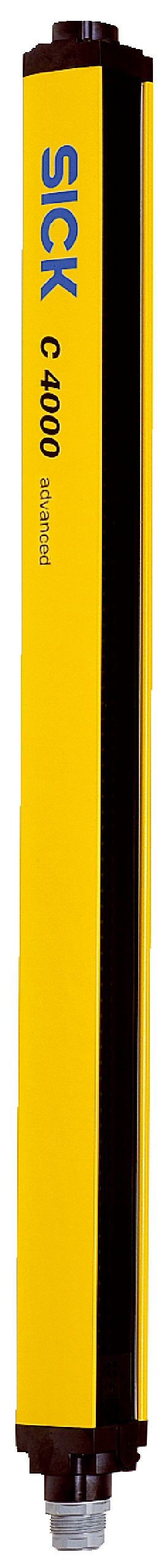

C40E-0702CB010 | Safety light curtains
The SICK C40E-0702CB010 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and reliable protective functions with a scanning range of 21 meters and a protective field height of 750 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0702CB010 | Safety light curtains
Brand: SICK
SKU: 1018795
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, optical safety curtain
Technical Specifications
- Dimensions (H x L x W): 750mm x 40mm x 48mm
- Weight: 1.7 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Protective field height of 750 mm with 20 mm resolution
- Scanning range up to 21 m with optical synchronization
- Response time of 14 ms
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- Hirschmann male connector M26, 12-pin system connection
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Output signal switching devices with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- Housing made of aluminum extruded profile with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient 24 V DC operation minimizes power consumption
- High reliability and safety reduce risk of industrial accidents and associated environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-0702CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
