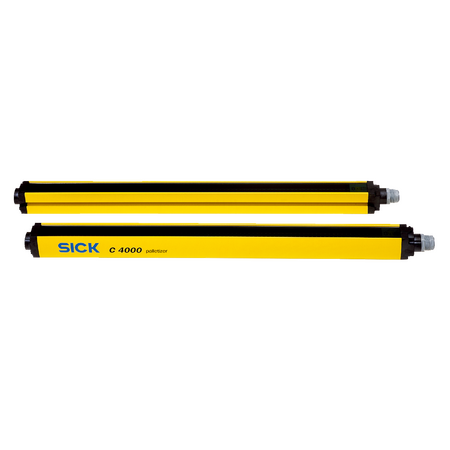

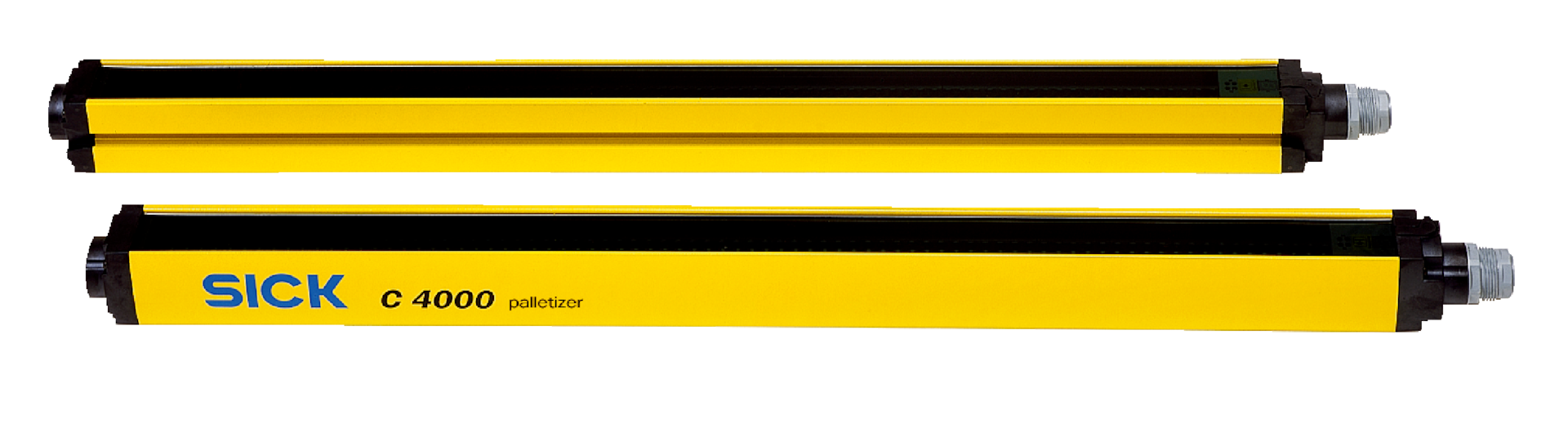

C40E-0703FK010 | Safety light curtains
The SICK C40E-0703FK010 is a Type 4 safety light curtain receiver designed for advanced industrial safety applications with a 7 m scanning range and 30 mm resolution, ensuring high safety integrity and reliable object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0703FK010 | Safety light curtains
Brand: SICK
SKU: 1043155
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C4000 safety light curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Mean Probability of Dangerous Failure per Hour (PFHD): 15 x 10^-9
- Mission Time: 20 years (EN ISO 13849)
- Protective Field Height: 750 mm
- Scanning Range: 7 m
- Resolution: 30 mm
- Synchronization: Optical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Current Carrying Capacity per OSSD: ≤ 500 mA
- Application Diagnostic Output: 24 V DC, ≤ 100 mA
- Enclosure Rating: IP65 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Housing Material: Aluminum extruded profile
- Weight: 1.7 kg
- Dimensions (H x L x W): 40mm x 200mm x 48mm
- Weight: 1.7 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization with 7 m scanning range and 750 mm protective field height
- Resolution of 30 mm
- Advanced functions including protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, and self-teaching dynamic blanking
- Multiple sampling and safe SICK device communication via EFI
- Bypass and operating mode switching in combination with UE402
- IP65 rated enclosure for robust industrial use
- Operating temperature range 0 °C to +55 °C
- Aluminum extruded profile housing
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Industrial safety applications in normal industrial environments
- Palletizer advanced safety systems
- Object entry monitoring and direction monitoring in manufacturing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impact
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation with low power consumption
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40E-0703FK010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring advanced object detection and protection.
