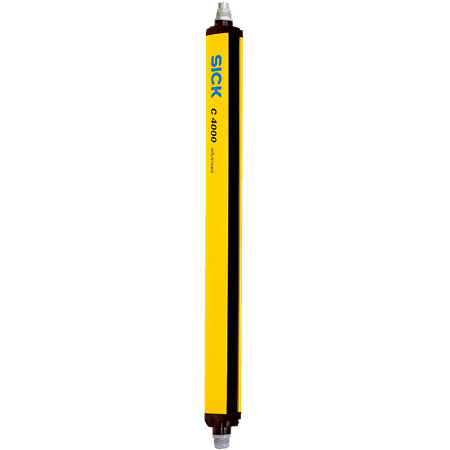

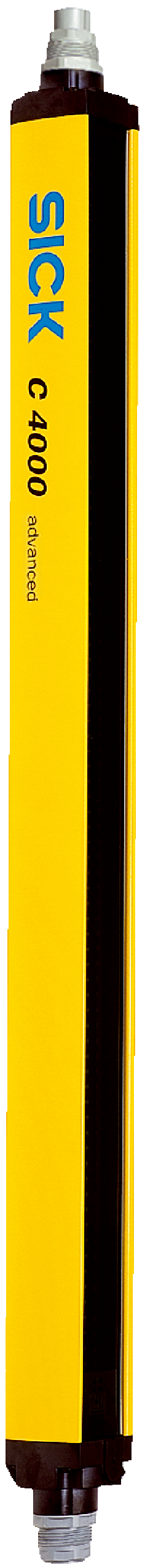

C40E-0704DB010 | Safety light curtains
The SICK C40E-0704DB010 is a Type 4 safety light curtain receiver designed for normal industrial environments, offering high safety integrity and reliable protective functions with a scanning range of 21 meters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0704DB010 | Safety light curtains
Brand: SICK
SKU: 1018863
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, C40E safety curtain
Technical Specifications
- Resolution: 40 mm
- Scanning range: 21 m
- Protective field height: 750 mm
- Response time: 10 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Housing material: Aluminum extruded profile
- Weight: 1.7 kg
- Dimensions (H x L x W): 750mm x 48mm x 40mm
- Weight: 1.7 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 40 mm with a scanning range of 21 m
- Protective field height of 750 mm
- Response time of 10 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking, emergency stop/bypass at extension connection, and safe SICK device communication via EFI
- Interfaces include Hirschmann male and female connectors, configuration via PC with CDS software, and 7-segment display
- Output signal switching devices with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- Housing made of aluminum extruded profile with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing ensures long product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-0704DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity protective devices.
