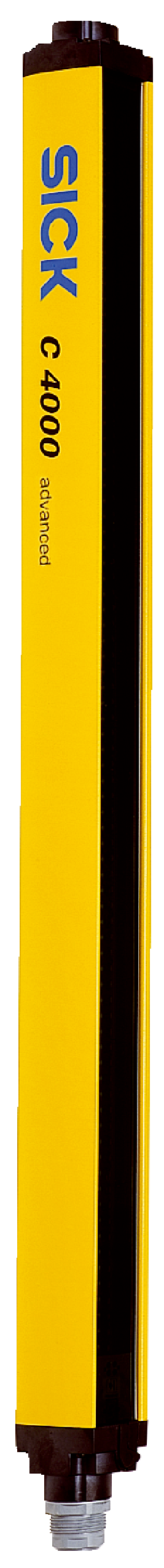

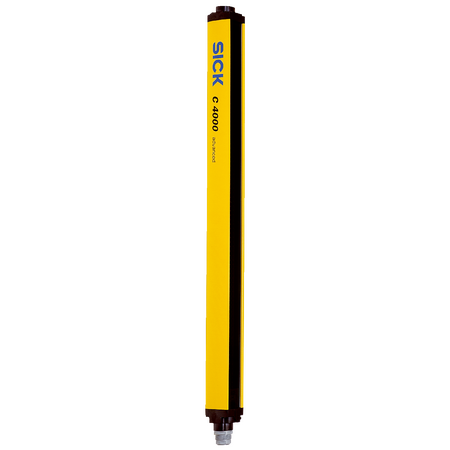

C40E-0901CB010 | Safety light curtains
The SICK C40E-0901CB010 safety light curtain receiver offers high safety performance with Type 4 classification, suitable for normal industrial environments with a protective field height of 900 mm and scanning range of 10 m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-0901CB010 | Safety light curtains
Brand: SICK
SKU: 1018785
Alternatively Known As: Safety light curtain receiver, industrial safety light barrier, SICK safety sensor, optical safety curtain
Technical Specifications
- Dimensions (H x L x W): 900mm x 40mm x 48mm
- Weight: 1.99 kg
Key Features
- Protective field height of 900 mm
- Scanning range up to 10 m
- Resolution of 14 mm
- Response time of 17 ms
- Optical synchronization
- Type 4 safety (IEC 61496-1)
- SIL 3 safety integrity level (IEC 61508)
- Category 4 (EN ISO 13849)
- Performance level PL e (EN ISO 13849)
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- Hirschmann male connector M26, 12-pin system connection
- Configuration via PC with CDS software
- 7-segment display for status
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Output signal switching devices: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Housing made of aluminum extruded profile
- Enclosure rating IP65 (EN 60529)
- Operating temperature 0 °C to +55 °C
- Vibration resistance 5 g, shock resistance 10 g
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-0901CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
