C40E-1203DB010 | Safety light curtains

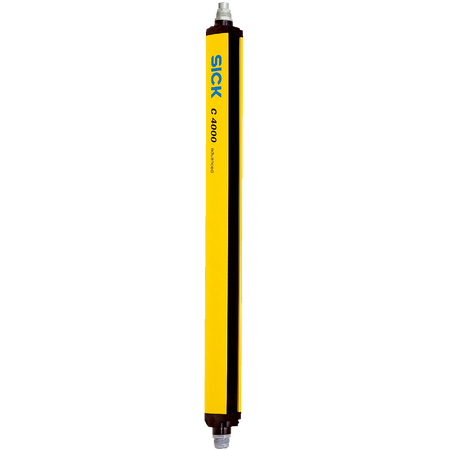

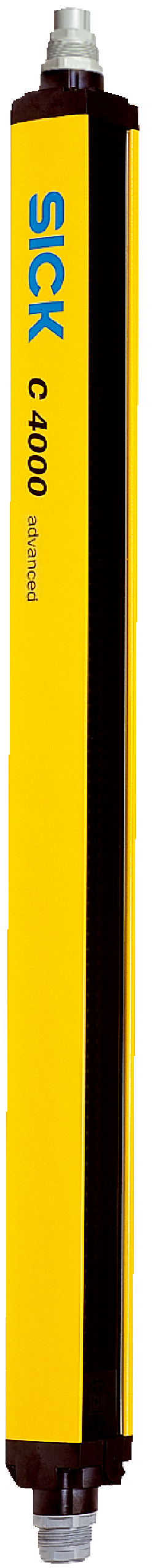

The SICK C40E-1203DB010 Safety Light Curtain Receiver is designed for normal industrial environments, offering high safety integrity with Type 4 classification, SIL 3, and Category 4 compliance. It features a 21 m scanning range and 1,200 mm protective field height with robust IP65 rated aluminum housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1203DB010 | Safety light curtains
Brand: SICK
SKU: 1018855
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C40E safety curtain
Technical Specifications
- Dimensions (H x L x W): 40mm x 300mm x 48mm
- Weight: 2.56 kg
Key Features
- Resolution of 30 mm
- Scanning range up to 21 m
- Protective field height of 1,200 mm
- Response time of 13 ms
- Optical synchronization
- Type 4 safety according to IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 (EN ISO 13849)
- Performance level PL e (EN ISO 13849)
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking, emergency stop/bypass, and safe device communication via EFI
- Interfaces include Hirschmann male and female connectors, configuration via PC with CDS software, and 7-segment display
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Output with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- Housing made of aluminum extruded profile
- Enclosure rating IP65 (EN 60529)
- Operating temperature range 0 °C to +55 °C
- Storage temperature range -25 °C to +70 °C
- Vibration resistance 5 g, 10 Hz to 55 Hz
- Shock resistance 10 g, 16 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment and electrical standards.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1203DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
