C40E-1303CB010 | Safety light curtains

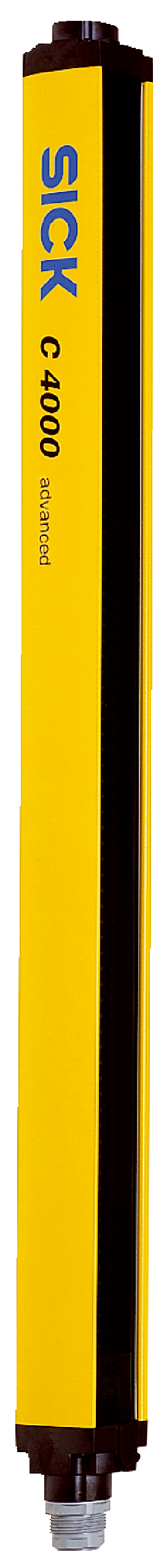

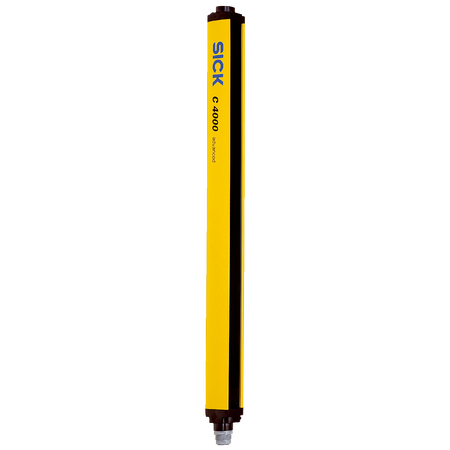

The SICK C40E-1303CB010 Safety Light Curtain Receiver is designed for normal industrial environments, providing high safety integrity with Type 4 protection, SIL 3 rating, and advanced safety functions for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1303CB010 | Safety light curtains
Brand: SICK
SKU: 1018811
Alternatively Known As: Industrial Safety Light Curtain, Machine Safety Sensor, Optical Safety Barrier, Safety Light Barrier
Technical Specifications
- Dimensions (H x L x W): 40mm x 1350mm x 48mm
- Weight: 2.85 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 30 mm with a scanning range of 21 m
- Protective field height of 1,350 mm
- Response time of 13 ms
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- Hirschmann male connector M26, 12-pin system connection
- Configuration via PC with CDS software
- 7-segment display for status indication
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Output with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- IP65 rated enclosure for dust and water protection
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety systems and electrical standards.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum extruded profile housing for long product life
- Energy-efficient operation with low power consumption
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1303CB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high performance and reliability.
