C40E-1502CI010 | Safety light curtains

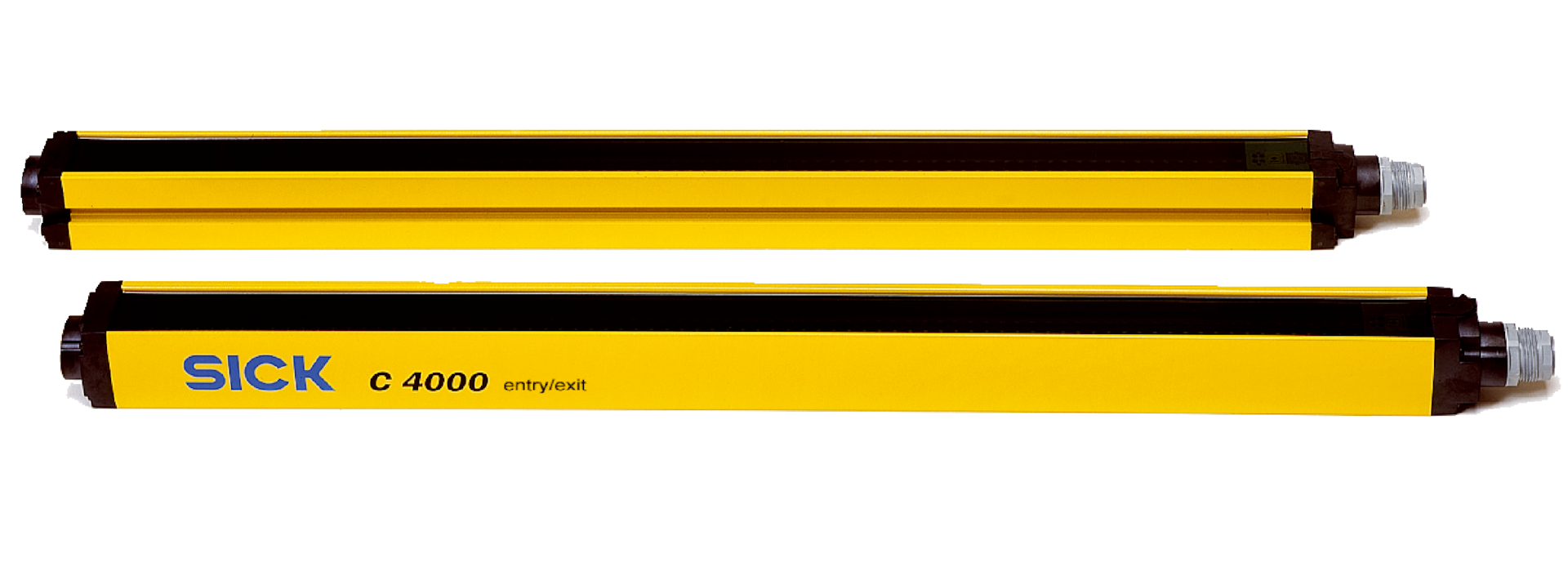

The SICK C40E-1502CI010 Safety Light Curtain Receiver is designed for normal industrial environments, providing high safety integrity with Type 4 protection, SIL 3 certification, and advanced safety functions for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

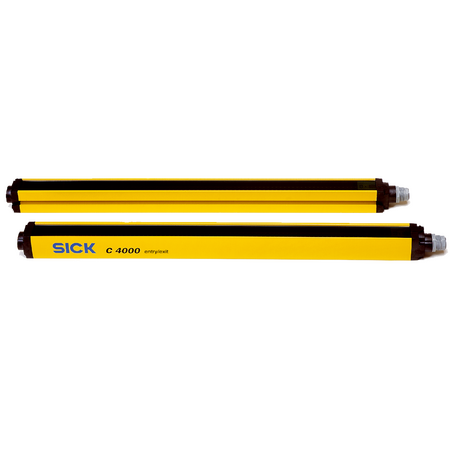

Product Name/Title: C40E-1502CI010 | Safety light curtains
Brand: SICK
SKU: 1024051
Alternatively Known As: Safety light curtain receiver, industrial safety sensor, machine safeguarding light curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Resolution: 20 mm
- Scanning Range: 19 m
- Protective Field Height: 1,500 mm
- Synchronization: Optical synchronization
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply Voltage: 24 V DC (19.2 V ... 28.8 V)
- Current Carrying Capacity per OSSD: ≤ 500 mA
- Enclosure Rating: IP65 (IEC 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Weight: 3,140 g
- Housing Material: Aluminum extruded profile
- Display Elements: 7-segment display
- Configuration Method: PC with CDS (Configuration and Diagnostic Software)
- Dimensions (H x L x W): 40mm x 1500mm x 48mm
- Weight: 3.14 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level e
- Resolution of 20 mm and scanning range of 19 m
- Protective field height of 1,500 mm
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, dynamic blanking, and safe SICK device communication via EFI
- Operating mode switching in combination with UE402
- Output signal switching devices with 2 PNP semiconductors, short-circuit protected and cross-circuit monitored
- Enclosure rating IP65 for robust protection
- Operating temperature range 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long product life reducing waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40E-1502CI010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity machine safeguarding.
