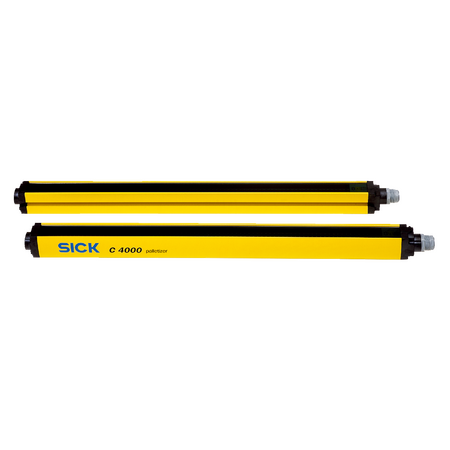

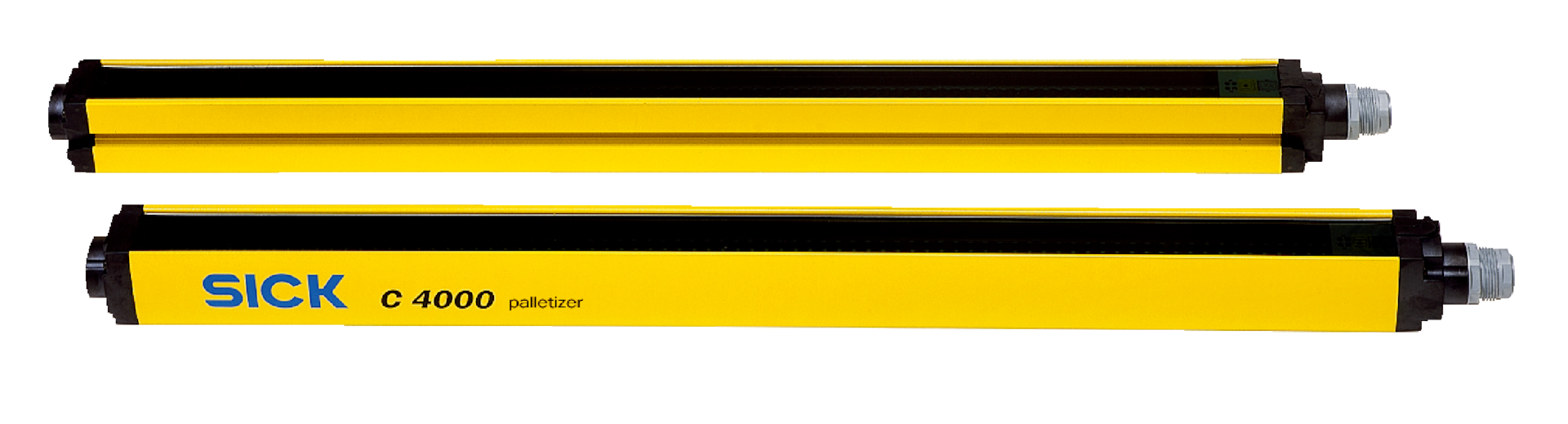

C40E-1603FK010 | Safety light curtains
The SICK C40E-1603FK010 Safety Light Curtain Receiver offers advanced industrial safety with Type 4 protection, SIL 3 integrity, and a 7 m scanning range, ideal for palletizer and industrial automation safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1603FK010 | Safety light curtains
Brand: SICK
SKU: 1043161
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C40E safety curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Resolution: 30 mm
- Scanning Range: 7 m
- Protective Field Height: 1,650 mm
- Synchronization: Optical
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply Voltage: 24 V DC (19.2 V to 28.8 V)
- Current Carrying Capacity per OSSD: ≤ 500 mA
- Diagnostic Output: 24 V DC, ≤ 100 mA
- Enclosure Rating: IP65 (EN 60529)
- Operating Temperature: 0 °C to +55 °C
- Housing Material: Aluminum extruded profile
- Weight: 3.42 kg
- Dimensions (H x L x W): 1650mm x 40mm x 48mm
- Weight: 3.42 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 30 mm with a scanning range of 7 m
- Protective field height of 1,650 mm
- Optical synchronization
- Advanced functions including protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, reduced resolution
- Self-teaching dynamic blanking for goods and pallet detection
- Multiple sampling, direction monitoring, object entry monitoring
- Safe SICK device communication via EFI
- Bypass and operating mode switching in combination with UE402
- 7-segment display for status indication
- Hirschmann male connector M26, 12-pin system connection
- Configuration via PC with CDS software
- IP65 rated enclosure for protection
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
- Palletizer advanced safety systems
- Industrial automation safety monitoring
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Durable aluminum housing supports long product life and reduces waste
- Energy-efficient 24 V DC operation minimizes power consumption
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40E-1603FK010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
