C40E-1801DB010 | Safety light curtains

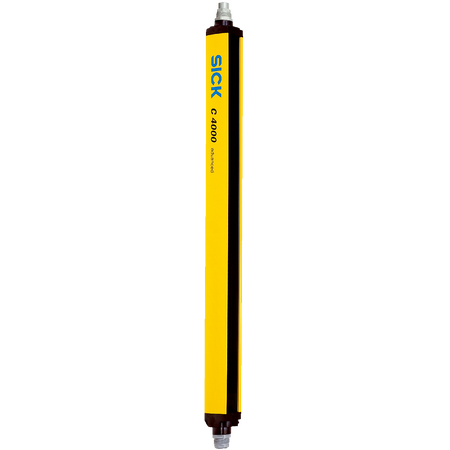

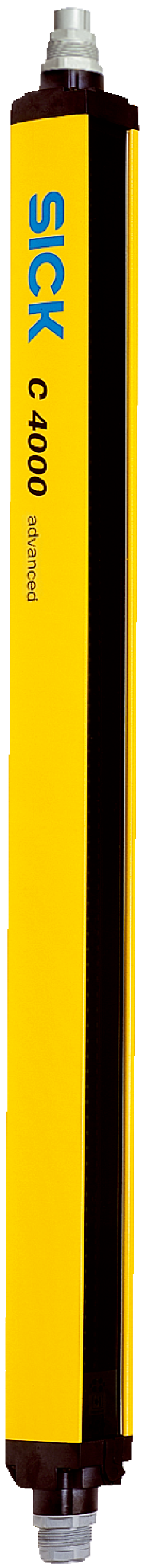

The SICK C40E-1801DB010 Safety Light Curtain Receiver offers high safety integrity and reliable protection for industrial environments with a 1,800 mm protective field height and advanced safety functions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1801DB010 | Safety light curtains
Brand: SICK
SKU: 1018837
Alternatively Known As: Safety light curtain receiver, industrial safety curtain, SICK safety sensor, C40E safety light barrier
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1,800 mm
- Response time: 26 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Housing material: Aluminum extruded profile
- Weight: 3.71 kg
- Dimensions (H x L x W): 40mm x 1800mm x 48mm
- Weight: 3.71 kg
Key Features
- Protective field height of 1,800 mm with 14 mm resolution
- Scanning range up to 10 m
- Response time of 26 ms
- Optical synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking, emergency stop/bypass
- Safe SICK device communication via EFI
- Interfaces include Hirschmann connectors and PC configuration via CDS software
- IP65 rated enclosure for robust industrial use
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing supports long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1801DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity light curtain protection.
