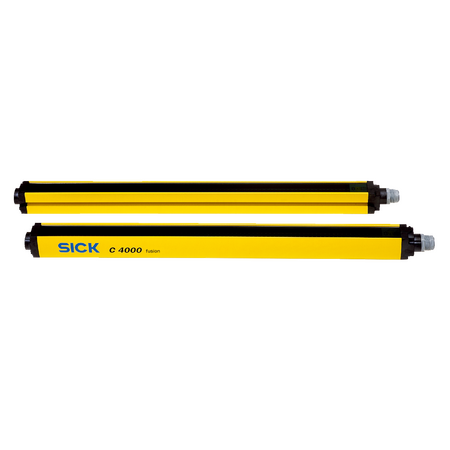

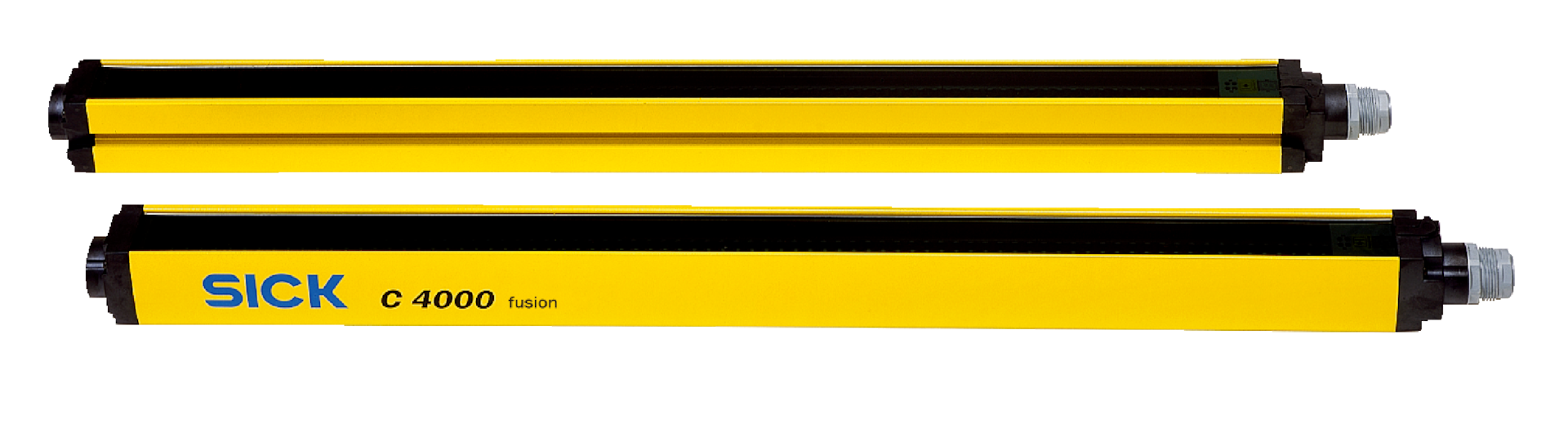

C40E-1802FY010 | Safety light curtains
The SICK C40E-1802FY010 Safety Light Curtain Receiver offers high safety performance with Type 4 protection, SIL 3 integrity, and advanced monitoring functions for industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1802FY010 | Safety light curtains
Brand: SICK
SKU: 1043199
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C40E safety curtain
Technical Specifications
- Resolution: 20 mm
- Scanning range: 21 m
- Protective field height: 1,800 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Current per OSSD: ≤ 500 mA
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Housing material: Aluminum extruded profile
- Weight: 3.71 kg
- Dimensions (H x L x W): 40mm x 1800mm x 48mm
- Weight: 3.71 kg
Key Features
- Protective field height of 1,800 mm with 20 mm resolution
- Scanning range up to 21 m with optical synchronization
- Type 4 safety (IEC 61496-1) with SIL 3 integrity level (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Multiple safety functions including restart interlock, external device monitoring, beam coding, and configurable scanning range
- Dynamic and self-teaching blanking for object and pallet detection
- Safe SICK device communication via EFI
- Robust aluminum extruded profile housing with IP65 rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing extends product life reducing waste
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1802FY010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protection.
