C40E-1803DB010 | Safety light curtains

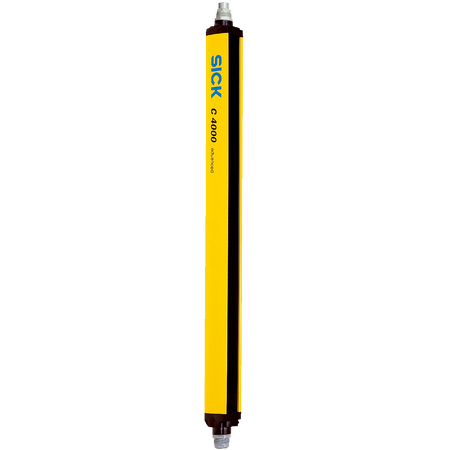

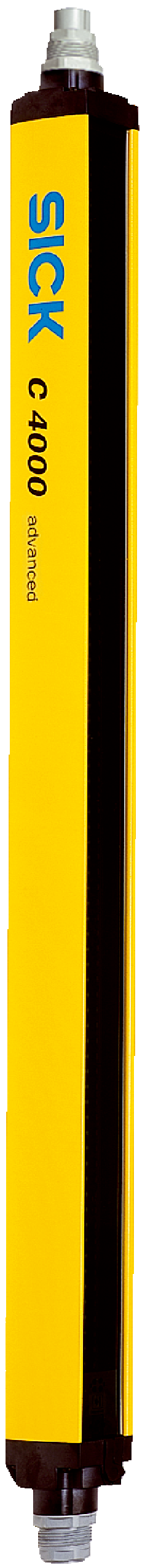

The SICK C40E-1803DB010 Safety Light Curtain Receiver is designed for normal industrial environments, offering high safety performance with Type 4 classification, SIL 3 integrity, and a protective field height of 1,800 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40E-1803DB010 | Safety light curtains
Brand: SICK
SKU: 1018859
Alternatively Known As: Safety light curtain receiver, industrial safety light curtain, SICK safety sensor, C40E light curtain
Technical Specifications
- Resolution: 30 mm
- Scanning range: 21 m
- Protective field height: 1,800 mm
- Response time: 15 ms
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD OFF
- Output: 2 PNP semiconductors, short-circuit protected, cross-circuit monitored
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Current capacity per OSSD: ≤ 500 mA
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Housing material: Aluminum extruded profile
- Weight: 3.71 kg
- Dimensions (H x L x W): 40mm x 1800mm x 48mm
- Weight: 3.71 kg
Key Features
- Protective field height of 1,800 mm with 30 mm resolution
- Scanning range up to 21 m
- Response time of 15 ms
- Optical synchronization
- Type 4 safety according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking, emergency stop/bypass at extension connection, and safe SICK device communication via EFI
- Interfaces include Hirschmann male and female connectors and configuration via PC with CDS software
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Housing made of aluminum extruded profile with IP65 enclosure rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing supports long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40E-1803DB010 Safety Light Curtain Receiver is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
