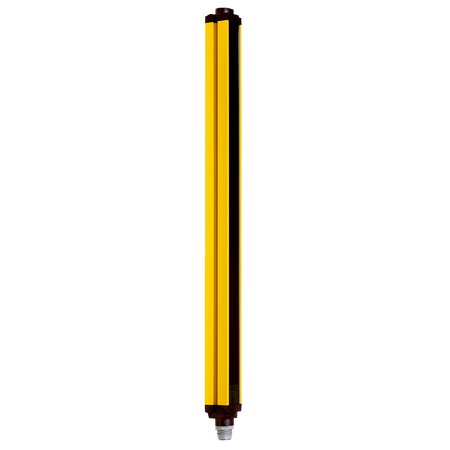

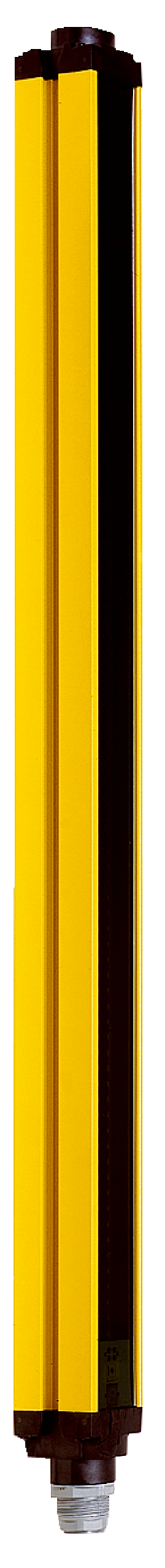

C40S-0302CA010 | Safety light curtains
The SICK C40S-0302CA010 safety light curtain sender is designed for normal industrial environments, providing high safety integrity with Type 4 protection and SIL 3 certification, featuring a 21 m scanning range and 300 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-0302CA010 | Safety light curtains
Brand: SICK
SKU: 1018613
Alternatively Known As: Safety light curtain sender, industrial safety light barrier, optical safety sensor, SICK safety curtain
Technical Specifications
- Resolution: 20 mm
- Scanning range: 21 m
- Protective field height: 300 mm
- Synchronization: Optical
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wave length: 850 nm
- System connection: Hirschmann male connector M26, 12-pin
- Permitted cable length: 50 m
- Display elements: 7-segment display
- Dimensions (H x L x W): 48mm x 300mm x 40mm
- Weight: 0.82 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization
- Configurable scanning range with fixed and floating blanking
- Safe SICK device communication via EFI
- Restart interlock and external device monitoring (EDM)
- Bypass and operating mode switching in combination with UE402
- 7-segment display for status indication
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems and compliant with relevant safety standards.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Low power consumption with 24 V DC supply voltage
- Complies with RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK C40S-0302CA010 safety light curtain sender is available for immediate purchase, ideal for industrial safety applications requiring high integrity protection.
