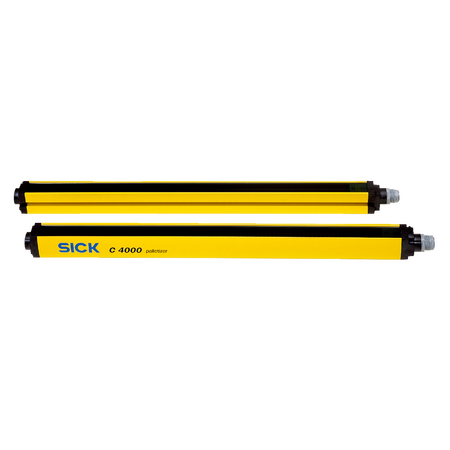

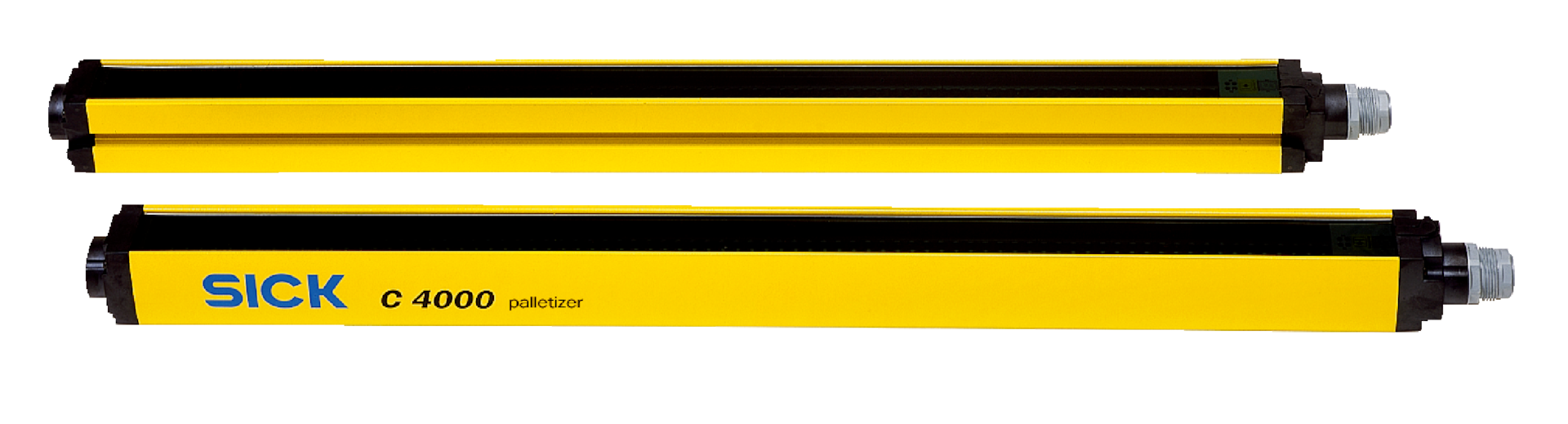

C40S-0704CD010 | Safety light curtains
The SICK C40S-0704CD010 Safety Light Curtain is a Type 4 safety device designed for industrial environments, providing reliable protection with a 7 m scanning range and 750 mm protective field height.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-0704CD010 | Safety light curtains
Brand: SICK
SKU: 1043445
Alternatively Known As: Safety light curtain, industrial safety sensor, palletizer safety curtain, optical safety barrier
Technical Specifications
- Resolution: 40 mm
- Scanning range: 7 m
- Protective field height: 750 mm
- Synchronization: Optical synchronization
- System connection: Hirschmann male connector M26, 12-pin
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Weight: 1.67 kg
- Housing material: Aluminum extruded profile
- Display elements: 7-segment display
- Wave length: 850 nm near-infrared (NIR), invisible
- Dimensions (H x L x W): 750mm x 48mm x 40mm
- Weight: 1.67 kg
Key Features
- Type 4 safety light curtain compliant with IEC 61496-1
- Safety Integrity Level SIL 3 (IEC 61508)
- Category 4 (EN ISO 13849) with Performance Level PL e
- Optical synchronization with configurable scanning range
- Protective field height of 750 mm and scanning range of 7 m
- Near-infrared (NIR), invisible light wavelength of 850 nm
- 7-segment display for status indication
- Robust aluminum extruded profile housing
- IP65 rated enclosure for dust and water protection
- Shock resistance of 10 g and vibration resistance of 5 g
Professional Installation Requirements
- Installation by a qualified professional is required to ensure compliance with safety standards and proper integration into industrial safety systems.
Applications
- Industrial safety applications in normal industrial environments
- Palletizer safety systems
- Machine safeguarding with optical synchronization
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable aluminum housing promotes long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-0704CD010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high reliability and compliance with safety standards.
