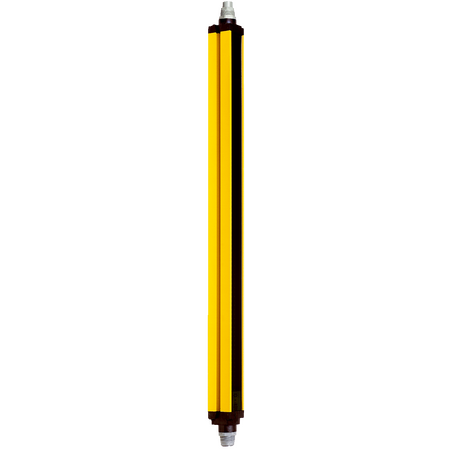

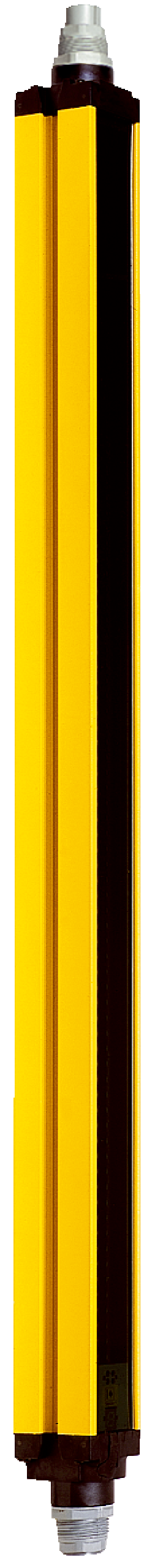

C40S-1003DA010 | Safety light curtains
The SICK C40S-1003DA010 Safety Light Curtain is a Type 4 safety device designed for normal industrial environments, providing high safety integrity and configurable scanning range with robust IP65 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1003DA010 | Safety light curtains
Brand: SICK
SKU: 1018743
Alternatively Known As: Safety light curtain, industrial safety sensor, optical safety barrier, machine safety light curtain
Technical Specifications
- Resolution: 30 mm
- Scanning range: 21 m
- Protective field height: 1050 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15*10^-9 to 63*10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state: At least one OSSD OFF in fault
- System connection: Hirschmann male connector M26, 12-pin
- Extension connection: Hirschmann female connector M26, 12-pin
- Display: 7-segment
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 40mm x 1050mm x 48mm
- Weight: 2.25 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance level PL e (EN ISO 13849)
- Optical synchronization
- Configurable scanning range with fixed and floating blanking
- External device monitoring (EDM) and restart interlock
- Safe SICK device communication via EFI
- Bypass and operating mode switching in combination with UE402
- 7-segment display for status indication
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Enclosure rating IP65 (EN 60529)
- Operating temperature 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Energy-efficient operation with low residual ripple
- Supports safe machine operation reducing risk of accidents and environmental hazards
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40S-1003DA010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective sensing.
