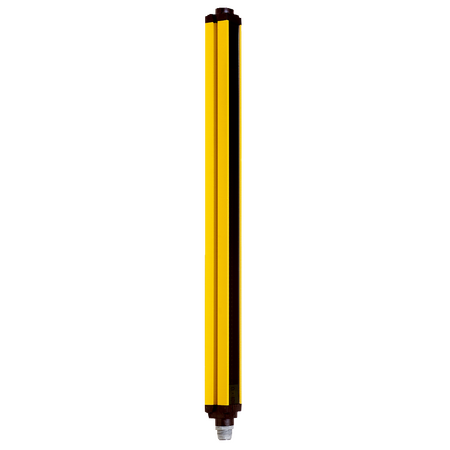

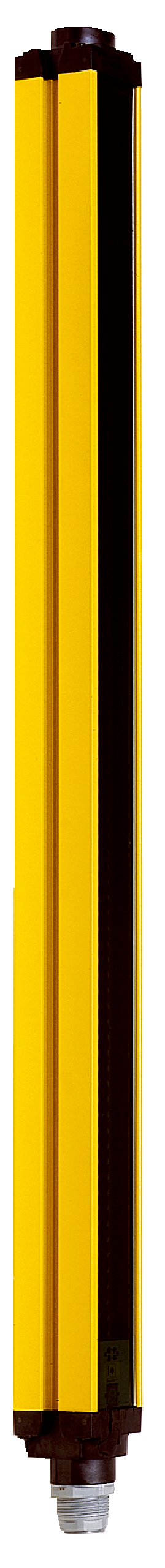

C40S-1301CA010 | Safety light curtains
The SICK C40S-1301CA010 Safety Light Curtain is designed for normal industrial environments, providing high safety integrity with Type 4 protection, SIL 3 rating, and configurable scanning range for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1301CA010 | Safety light curtains
Brand: SICK
SKU: 1018603
Alternatively Known As: Industrial safety light curtain, machine safety sensor, optical safety barrier, SICK safety sensor
Technical Specifications
- Resolution: 14 mm
- Scanning range: 10 m
- Protective field height: 1350 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 x 10^-9 to 63 x 10^-9 (EN ISO 13849)
- Mission time: 20 years
- Safe state on fault: At least one OSSD off
- System connection: Hirschmann male connector M26, 12-pin
- Cable length permitted: 50 m
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Residual ripple: ≤ 10%
- Housing material: Aluminum extruded profile
- Enclosure rating: IP65
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Wavelength: 850 nm
- Dimensions (H x L x W): 1350mm x 40mm x 48mm
- Weight: 2.82 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Optical synchronization
- Configurable scanning range with fixed and floating blanking
- Safe SICK device communication via EFI
- Restart interlock and external device monitoring (EDM)
- Bypass and operating mode switching in combination with UE402
- 7-segment display for status indication
- Protection class III (IEC 61140)
- Enclosure rating IP65 (EN 60529)
- Operating temperature range 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety standards and electrical connections to ensure compliance and optimal safety performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces material waste and extends product life
- Energy-efficient 24 V DC operation minimizes power consumption
- High reliability reduces downtime and waste from machine accidents
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C40S-1301CA010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity machine safeguarding.
