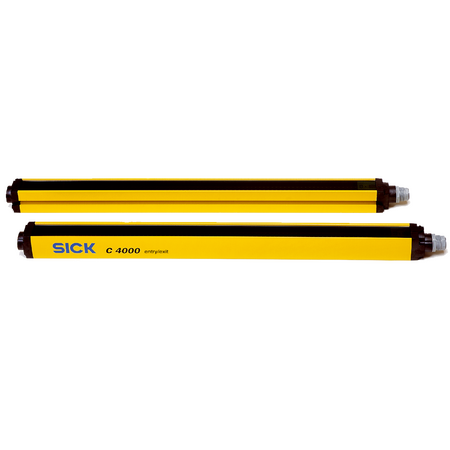

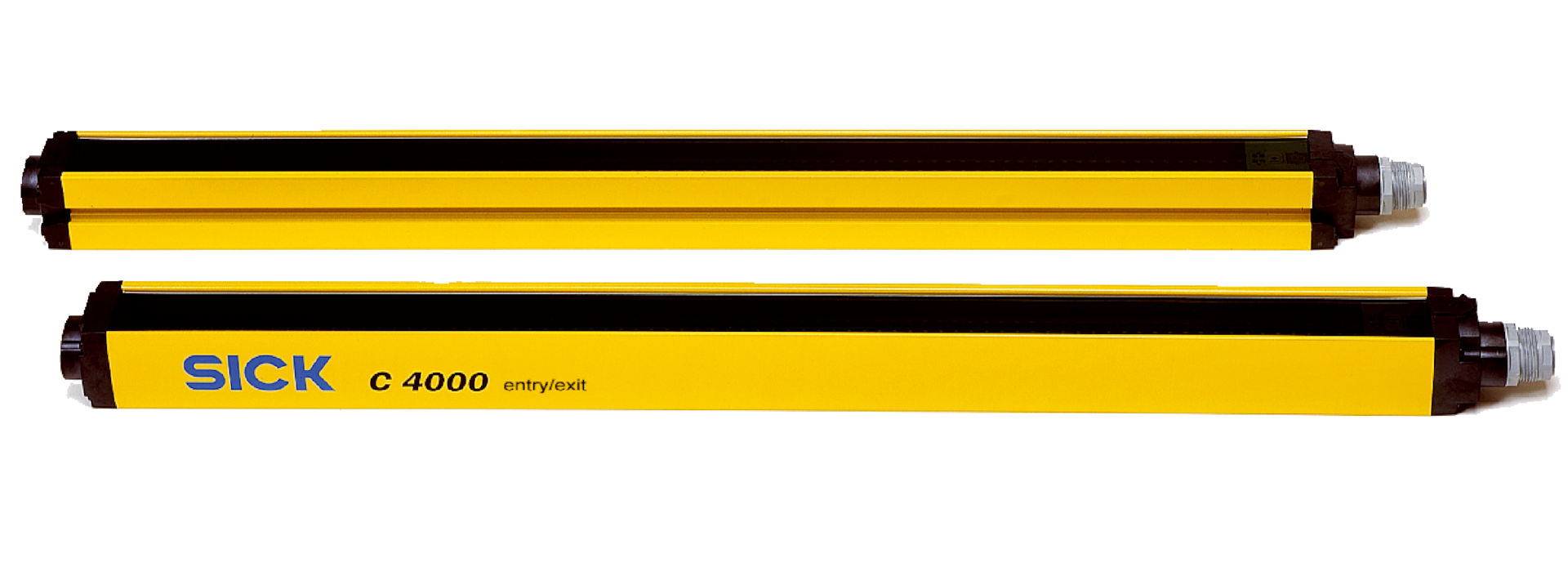

C40S-1502CI010 | Safety light curtains
The SICK C40S-1502CI010 Safety Light Curtain is a Type 4 safety device designed for normal industrial environments, providing high safety integrity with SIL 3 and Category 4 compliance, featuring a 1.5 m protective field height and 19 m scanning range.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1502CI010 | Safety light curtains
Brand: SICK
SKU: 1024050
Alternatively Known As: Safety light curtain, industrial safety sensor, protective light barrier, SICK safety curtain
Technical Specifications
- Type: Type 4 (IEC 61496-1)
- Safety Integrity Level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance Level: PL e (EN ISO 13849)
- Resolution: 20 mm
- Scanning Range: 19 m
- Protective Field Height: 1,500 mm
- Synchronization: Optical
- System Connection: Hirschmann male connector M26, 12-pin
- Configuration Connection: Female connector M8, 4-pin
- Configuration Method: PC with CDS software
- Display Elements: 7-segment display
- Protection Class: III (IEC 61140)
- Supply Voltage: 24 V DC (19.2 V to 28.8 V)
- Residual Ripple: ≤ 10%
- Enclosure Rating: IP65 (IEC 60529)
- Operating Temperature: 0 °C to +55 °C
- Storage Temperature: -25 °C to +70 °C
- Air Humidity: 15% to 95%, non-condensing
- Vibration Resistance: 5 g, 10 Hz to 55 Hz
- Shock Resistance: 10 g, 16 ms
- Housing Material: Aluminum extruded profile
- Weight: 3.11 kg
- Wavelength: 850 nm
- Dimensions (H x L x W): 1500mm x 40mm x 48mm
- Weight: 3.11 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 20 mm with a scanning range of 19 m
- Protective field height of 1,500 mm
- Optical synchronization
- Safe state in the event of a fault ensures at least one OSSD is OFF
- Beam coding and safe SICK device communication via EFI
- 7-segment display for status indication
- Hirschmann male connector M26, 12-pin system connection
- Configuration via PC with CDS software
- Protection class III (IEC 61140)
- Supply voltage 24 V DC (19.2 V to 28.8 V)
- Enclosure rating IP65 (IEC 60529)
- Operating temperature range 0 °C to +55 °C
- Shock resistance 10 g, vibration resistance 5 g
Professional Installation Requirements
- Professional installation by a qualified technician or engineer is required to ensure compliance with safety standards and proper system integration.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable aluminum housing promotes long product life and reduces waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK C40S-1502CI010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity protective light curtains.
