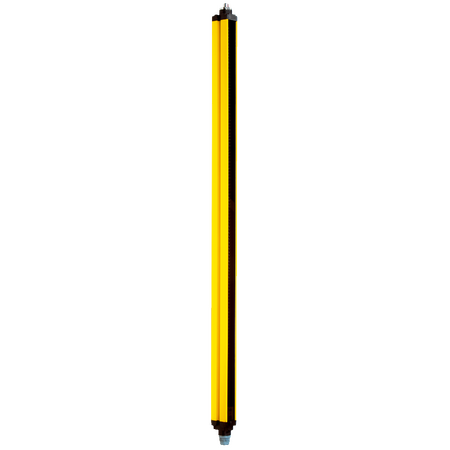

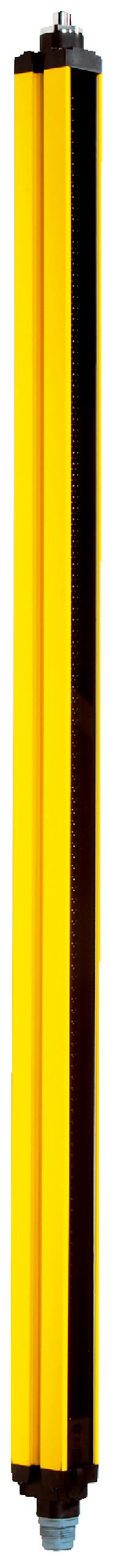

C40S-1603DA040 | Safety light curtains
The SICK C40S-1603DA040 Safety Light Curtain is a Type 4 safety device designed for normal industrial environments, offering high safety integrity and reliable protective functions with a scanning range of 21 meters and a protective field height of 1,650 mm.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1603DA040 | Safety light curtains
Brand: SICK
SKU: 1029019
Alternatively Known As: Industrial Safety Light Curtain, Type 4 Safety Light Barrier, Optical Safety Curtain, Machine Safety Light Curtain
Technical Specifications
- Dimensions (H x L x W): 1650mm x 40mm x 48mm
- Weight: 3.39 kg
Key Features
- Type 4 safety light curtain according to IEC 61496-1
- Safety integrity level SIL 3 (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Resolution of 30 mm with a scanning range of 21 m
- Protective field height of 1,650 mm
- Optical synchronization
- Functions include protective operation, restart interlock, external device monitoring, beam coding, configurable scanning range, fixed and floating blanking
- Safe SICK device communication via EFI
- Bypass, operating mode switching, and PSDI mode in combination with UE402
- 7-segment display for status indication
- Hirschmann male connector M26, 12-pin system connection and female connector M12, 8-pin extension connection
- Protection class III (IEC 61140) with 24 V DC supply voltage
- Robust aluminum extruded profile housing with IP65 rating
- Operating temperature range 0 °C to +55 °C
- Vibration and shock resistant
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure compliance with safety standards and optimal device performance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing enhances product longevity reducing waste
- Energy-efficient operation with low residual ripple
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK C40S-1603DA040 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity and reliable protective monitoring.
