C40S-1802FY010 | Safety light curtains

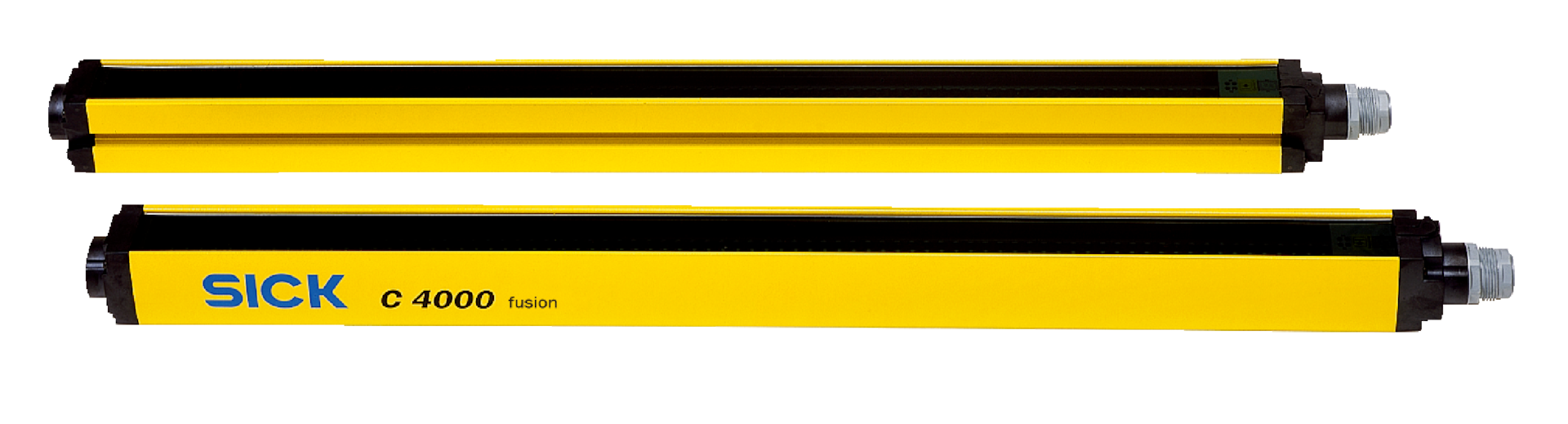

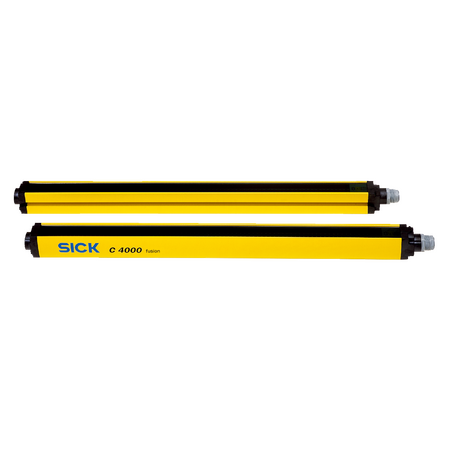

The SICK C40S-1802FY010 Safety Light Curtain is designed for normal industrial environments, providing high safety integrity with a protective field height of 1,800 mm and advanced safety functions for reliable machine safeguarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: C40S-1802FY010 | Safety light curtains
Brand: SICK
SKU: 1043198
Alternatively Known As: Safety light curtain, industrial safety sensor, machine safety light barrier, optical safety curtain
Technical Specifications
- Resolution: 20 mm
- Scanning range: 21 m
- Protective field height: 1,800 mm
- Synchronization: Optical synchronization
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (EN ISO 13849)
- Performance level: PL e (EN ISO 13849)
- PFHD: 15 * 10^-9 (EN ISO 13849)
- Mission time: 20 years (EN ISO 13849)
- Safe state on fault: At least one OSSD OFF
- System connection: Hirschmann male connector M26, 12-pin
- Configuration connection: Female connector M8, 4-pin
- Supply voltage: 24 V DC (19.2 V ... 28.8 V)
- Protection class: III (IEC 61140)
- Enclosure rating: IP65 (EN 60529)
- Operating temperature: 0 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Shock resistance: 10 g, 16 ms
- Light source: LED, visible red light
- Laser class: 1 (IEC 60825-1), eye-safe
- Dimensions (H x L x W): 1800mm x 40mm x 48mm
- Weight: 3.68 kg
Key Features
- Protective field height of 1,800 mm with 20 mm resolution
- Scanning range up to 21 m with optical synchronization
- Integrated laser alignment aid for precise setup
- Type 4 safety rated (IEC 61496-1) with SIL 3 integrity level (IEC 61508)
- Category 4 and Performance Level e (EN ISO 13849)
- Multiple safety functions including restart interlock, external device monitoring, beam coding, and configurable scanning range
- Dynamic and self-teaching blanking for object and pallet detection
- Safe SICK device communication via EFI
- Robust aluminum extruded profile housing with IP65 rating
- Operating temperature range 0 °C to +55 °C
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with safety light curtain systems and relevant safety standards to ensure proper setup and compliance.
Applications
- Normal industrial environment for safety light curtain applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK C40S-1802FY010 Safety Light Curtain is available for immediate purchase, ideal for industrial safety applications requiring high integrity machine safeguarding.
